Sagola X3500 MIX | Air Assist Airless Spray Gun
$868.00
The SAGOLA X3500 MIX is a professional air-assisted airless spray gun for appropriately diluted 1K and 2K primers and finishes. Its adjustable fan pattern, configurable pressure spring and choice of MIX tips allow the setup to be matched to the material and application.
- Description
- Additional information
- Reviews (0)
Description

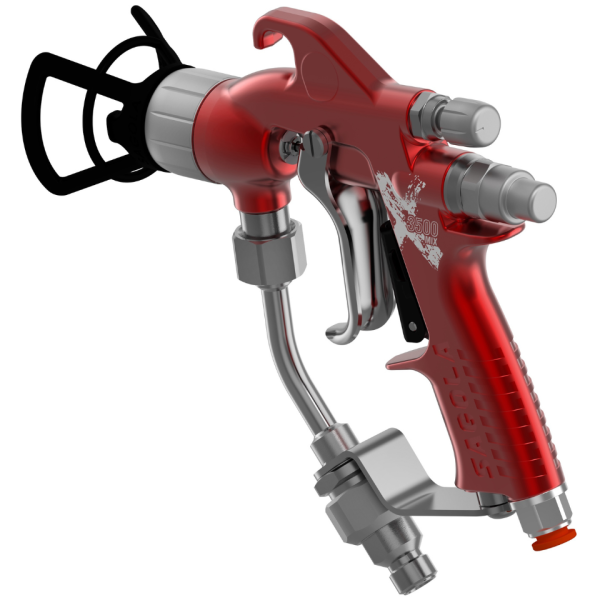

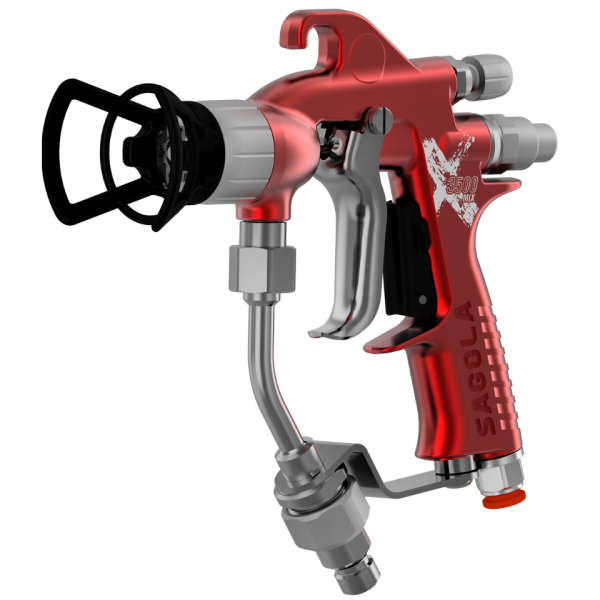

SAGOLA X3500 MIX Spray Gun
A professional air-assisted airless spray gun designed for controlled application in wood, plastics and related professional finishing work.
Why Choose the X3500 MIX?
- Adjustable fan width with narrow or round pattern control
- Suitable for compatible solvent- and water-based coatings
- Multiple tip options for different coatings and spray widths
- Available with or without a swivel coupling
- Gold or silver spring pressure configurations
- Integrated trigger lock and serviceable components
Adjustable Spray Control
The fan regulator allows the spray width to be adjusted from a larger fan to a narrower or round pattern. Material output can be matched to the job by selecting the appropriate fixed MIX tip.
Suitable Coatings
Recommended for properly prepared primers and finishes using compatible 1K and 2K solvent-based or water-based products. Applications include lacquers, enamels, acrylics, urethanes, primers and anticorrosive coatings.
Available tip sizes range from 0.009 to 0.021 inch. Material delivery and spray width will vary depending on the selected tip, product pressure, coating viscosity and hose characteristics.
Technical Specifications
| Technology | Air-assisted airless (MIX) |
|---|---|
| Recommended air pressure | 2 bar / 29 psi |
| Maximum air pressure | 3 bar / 43.5 psi |
| Maximum product pressure | Gold spring: 120 bar / 1,740 psi Silver spring: 200 bar / 2,900 psi |
| Weight | 510 g without swivel coupling 550 g with swivel coupling |
| Dimensions | 161 × 32 × 180 mm without swivel 161 × 32 × 201 mm with swivel |
| Air inlet | M16 with 8 mm quick connector |
| Product inlet | 1/4-inch M BSP |
| Product filter | 60 or 100 mesh |
| Tip sizes | 0.009 to 0.021 inch |
| Operating temperature | 0–60°C / 32–140°F |
Important: For professional use only. The spring, spray tip, filter and swivel configuration may vary. Confirm the required setup before ordering and follow the manual’s PPE, grounding and pressure-relief instructions.
Additional information
| Weight | N/A |
|---|---|
| Air Inlet | 8mm / 1/4", M16 / 1/4" |
| AAA TIP | 11/40, 13/40 |
| Swivel Coupling | Yes |
