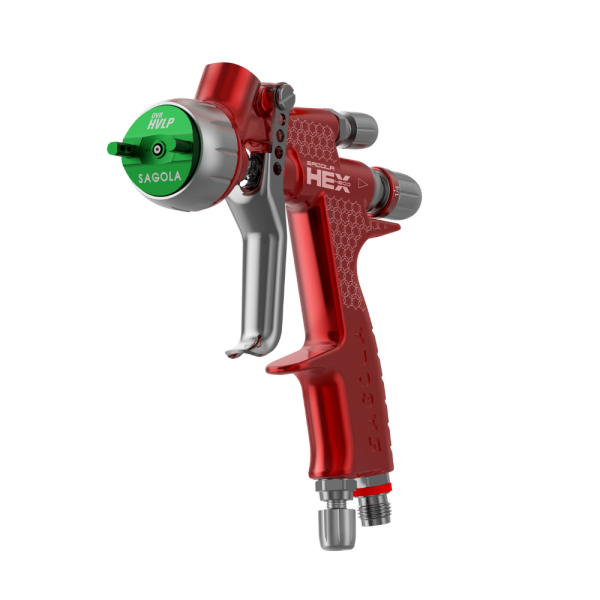

Sagola 4600 HEX Spray Gun
$960.00
The Sagola 4600 HEX is a lightweight gravity-feed spray gun with HEX system™ pre-atomization for a flat, stable fan and glass-smooth base/clear at low pressure. Durable anodized build, stainless internals, and DVR air caps deliver pro results with less waste.
- Description
- Size Guide
- Replacement Parts
- Product Videos
- Additional information
- Reviews (6)
Description
Sagola 4600 HEX Spray Gun — Pro Finish, Less Waste

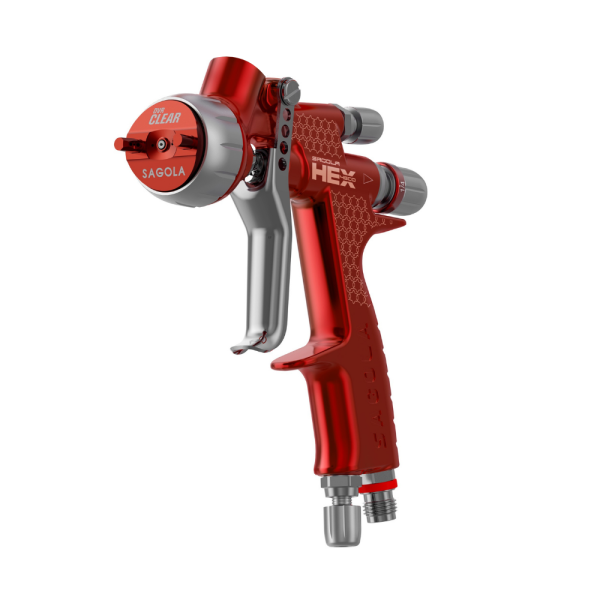

The Sagola 4600 HEX is a lightweight, gravity-feed refinishing gun engineered for fast color lay-down and glass-level clear coats.

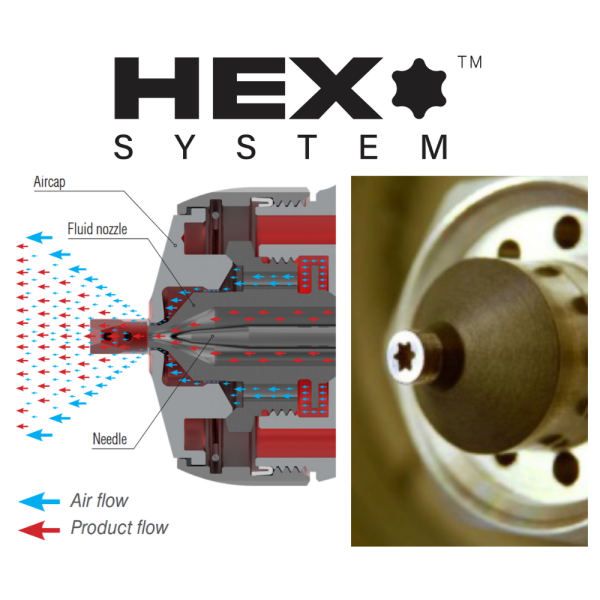

Its HEX system™ fluid nozzle pre-atomizes material to deliver a flat, balanced fan with uniform droplet size—so you hit target film builds with fewer passes, less mottling, and minimal texture.
Built from anodized aluminum with stainless wetted parts and PTFE seals, it’s made for daily booth work in automotive and industrial shops.
Why Pros Pick It
- HEX system™ nozzle: star-geometry pre-atomization for finer spray at higher flow rates—better coverage, smoother blends, truer color.
- Dialed-in control: independent product, air, and fan regulators; run low pressures without starving the pattern.
- Real-world speed: wide, stable fan reduces overlap corrections and rework.
- Built to last: anodized body, stainless internals, solvent-resistant seals.
- Clean-air ready: pairs best with coalescing filtration; antistatic hoses recommended in ATEX zones.
Ideal Uses
- Automotive refinish (basecoat, clear, waterborne)
- Industrial coatings on metal, wood, plastics
- Adhesives and varnishes needing consistent film builds
Quick Specs
| Weight (w/o cup) | ~468 g (1.03 lb) |
|---|---|
| Max air pressure | 4 bar (58 psi) |
| Recommended working pressure | 1.4–2.2 bar (20.3–31.9 psi) |
| HVLP reference | ~1.8 bar (26 psi) |
| Air inlet | 1/4″ BSP |
| Wetted materials | Anodized aluminum, stainless steel, PTFE, POM, Nylon |
| Typical spray distance | EPA caps 15–20 cm (6–8″); HVLP 12–15 cm (5–6″) |
| Operating temp | 0–60 °C (32–140 °F) |
Aircaps, Tips & Needles

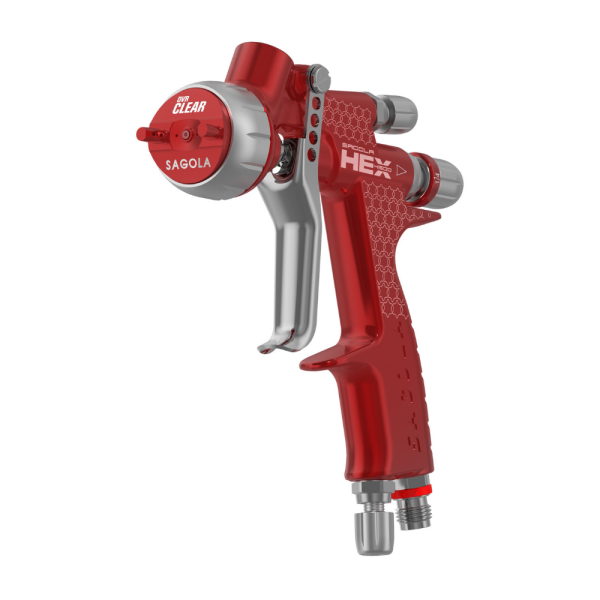

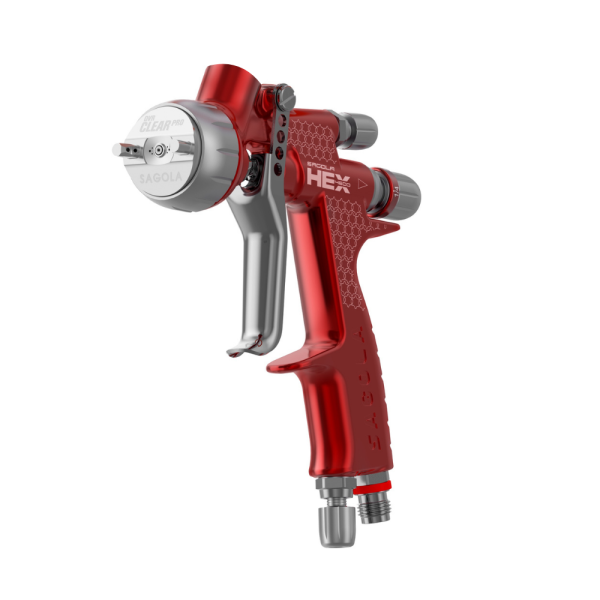

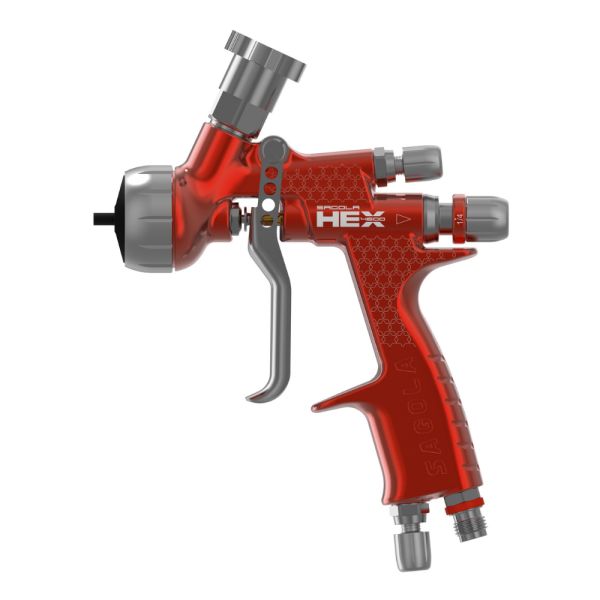

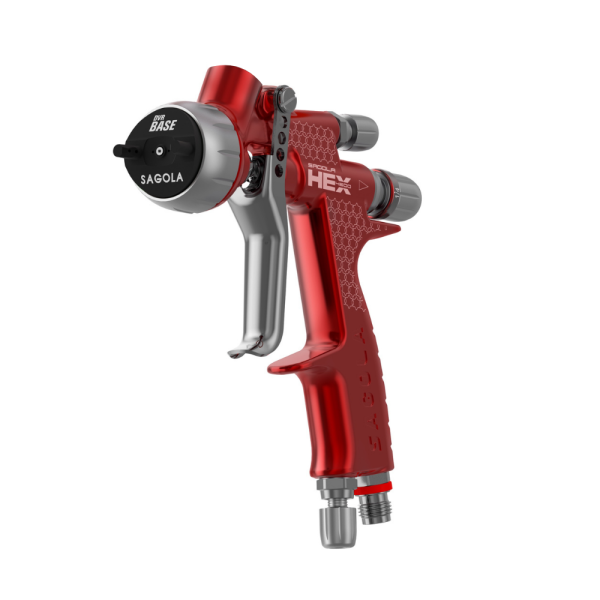

- Aircaps: DVR BASE, DVR CLEAR, DVR CLEAR PRO, DVR HVLP
- Tip/needle sets: 1.20, 1.20 XL, 1.30 (swap in minutes)

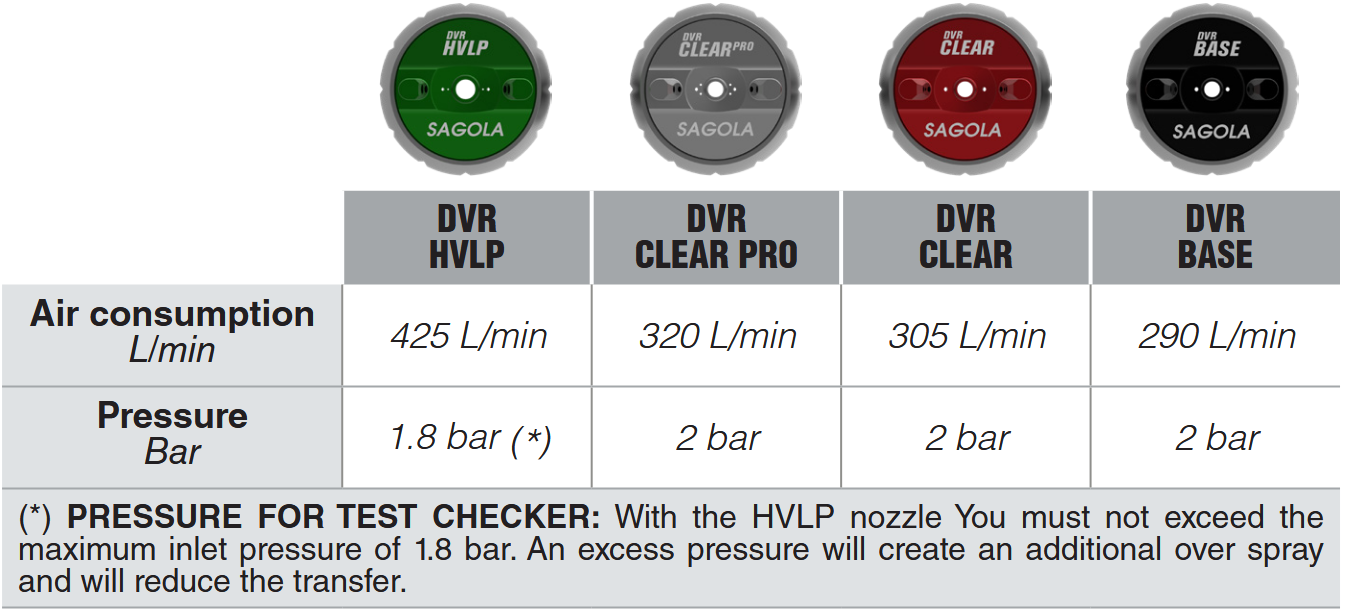

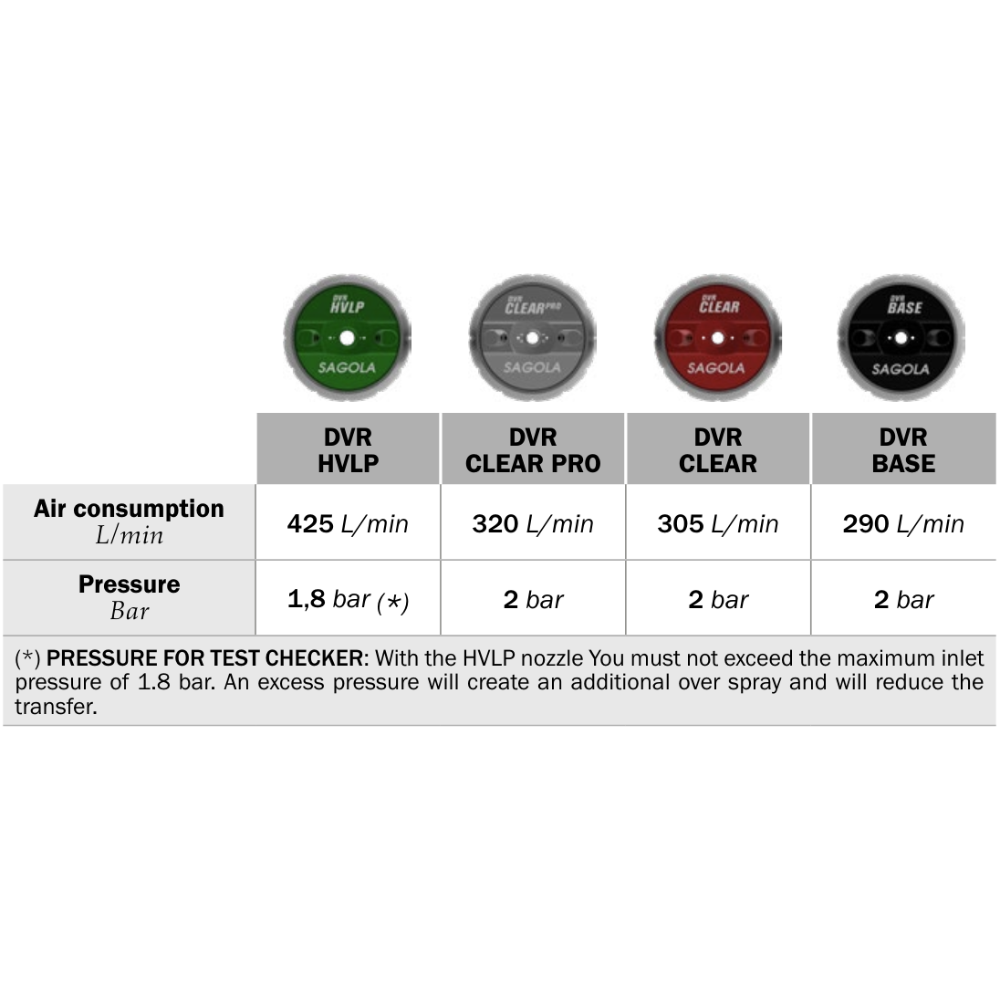

- Air consumption (ref): DVR HVLP ~425 L/min; DVR BASE ~290 L/min (at stated test pressures)
What’s in the Box
- Sagola 4600 HEX spray gun
- Accessory wrench & cleaning brush
- DPC cup adapter coupling
- Protective case
- Online manual
Pro Setup Tips
- Start at ~2.0 bar inlet, fan wide open; trim pressure to the lowest that achieves your finish.
- Keep perpendicular travel and consistent gun speed to maximize transfer and avoid dry spray.
- For waterborne or hot/dry booths, step up tip size +0.1–0.2 mm and slightly round the fan to load the core.
South Coast AQMD Rule 1151 Approved
Select Sagola 4600 HEX spray gun configurations are approved under South Coast AQMD Rule 1151.
VCAPCD Rule 74.18, Section B.4.e.
VCAPCD Approval Letter for Digital and Non-Digital Sagola 4600 Spray Guns
FAQs
What pressures should I run?
General work: 1.4–2.2 bar (20.3–31.9 psi). HVLP reference: ~1.8 bar (26 psi). Never exceed 4 bar max.
Which tip for base vs. clear?
Common picks: 1.20 / 1.20 XL for base & waterborne; 1.30 for higher-build clear. Match to product viscosity and booth conditions.
How do I keep it in spec?
Clean after each use, lightly lubricate moving threads, and use OEM parts. Solvent-resistant internals; avoid halogenated solvents. Warranty: 3 years.
- Interchangeable Parts
- Consistent high quality finishes
- Low Maintenance
-
Air CapsAir Caps | Sagola 4600
$148.00Select options This product has multiple variants. The options may be chosen on the product pageQuick View
-
Needle Nozzle KitsNeedle Nozzle Kit | Sagola 4600
Price range: $135.00 through $190.00Select options This product has multiple variants. The options may be chosen on the product pageQuick View
-
UncategorizedAir Valve Kit | Sagola 4600 & 4600 Xtreme
Price range: $54.00 through $59.00Select options This product has multiple variants. The options may be chosen on the product pageQuick View

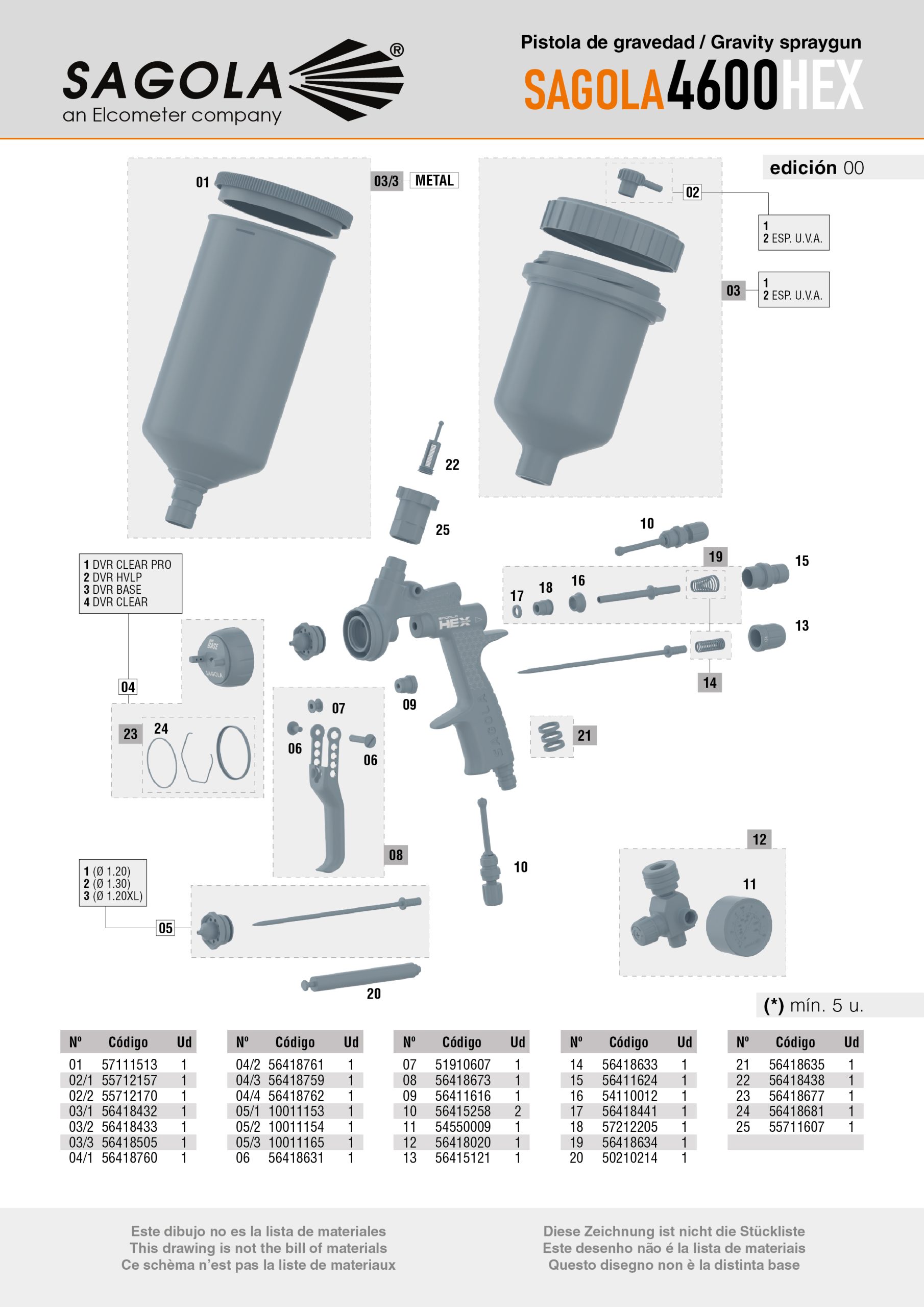

| Ref | Sku | Qty | Description |
|---|---|---|---|
| 01 | 57111513 | 1 | 1L (33.8floz) Gravity Cup Lid |
| 02/1 | 55712157 | 1 | 500ml/650ml Plastic Gravity Cup Connection Plug-Dripless |
| 02/2 | 55712170 | 1 | 650ml (22floz) Plastic G/Cup Connection Plug-Dripless Flat |
| 03/1 | 56418432 | 1 | 650ml (22floz) G5 Plastic Gravity Cup c/w 1 Product Filter |
| 03/2 | 56418433 | 1 | 650ml (22floz) G6 Blk G/Cup-UV Products c/w 1 Product Filter |
| 03/3 | 56418505 | 1 | 1L (33.8floz) G9 Aluminium Gravity Cup- Filter not included |
| 04/1 | 56418760 | 1 | NEW Sagola 4600: DVR ClearPro Aircap |
| 04/2 | 56418761 | 1 | NEW Sagola 4600: DVR HVLP Aircap |
| 04/3 | 56418759 | 1 | NEW Sagola 4600: DVR Base Aircap |
| 04/4 | 56418762 | 1 | NEW Sagola 4600: DVR Clear Aircap |
| 05/1 | 10011153 | 1 | Sagola 4600 HEX: 1.20mm Needle Nozzle Set |
| 05/2 | 10011153 | 1 | Sagola 4600 HEX: 1.30mm Needle Nozzle Set |
| 05/3 | 10011165 | 1 | Sagola 4600 HEX: 1.40mm Needle Nozzle Set |
| 06 | 56418631 | 1 | Trigger Shaft & Screw |
| 07 | 51910607 | 1 | Trigger Bush |
| 08 | 56418673 | 1 | HEX Trigger Kit (includes Trigger, Shaft & Screw) |
| 09 | 56411616 | 1 | Packing Gland |
| 10 | 56415258 | 1 | Fan Pattern Regulator |
| 11 | 54550009 | 1 | Analogue Pressure Gauge 0 – 10 bar / 0 – 140 psi |
| 12 | 56418020 | 1 | RC1 Air Flow Regulator with Analogue Pressure Gauge |
| 13 | 56415121 | 1 | Product Regulator Assembly – Complete |
| 14 | 56418633 | 1 | Fan Pattern & Product Regulator Spring Kit |
| 15 | 5411624 | 1 | Special Order Part |
| 16 | 54110012 | 1 | Air Valve Seat |
| 17 | 56418441 | 1 | Air Gasket (x6) |
| 18 | 57212205 | 1 | Air Valve Packing Screw for 4600 |
| 19 | 56418634 | 1 | Air Valve Kit for 4600 |
| 20 | 50210214 | 1 | Key Assembly (for changing the Air Valve Seat) |
| 21 | 56418635 | 1 | Color Code Identifiers |
| 22 | 56418438 | 1 | G5, G6, G7 Plastic & G9 Aluminium G/Cup Mini-Filter (x10) |
| 23 | 56418677 | 1 | “C” shaped part |
| 24 | 56418681 | 1 | Sagola 4600 Nozzle gasket |
| 25 | 55711607 | 1 | 3M PPS Disposable Cup Coupling |
Additional information
| Weight | N/A |
|---|---|
| Air Cap | Base, Clear, Clear Pro, HVLP |
| Needle/Nozzle | 1.20mm, 1.25mm, 1.30mm |
| Weight | 1.03 lb |
| Dimensions | 6.33 x 0.74 x 7.36 inches |
| Air inlet | BSP 1/4“ M |
| Maximum Air pressure | 4 Bar, 58 PSI |
| Recommended air pressure | 1.4 to 2.2 bar, 20.3 to 31.9 psi |
| Recommended air pressure HVLP | 1.8 bar, 26psi |
| Materials in contact with product | Anodized aluminum, STAINLESS steel, PTFE, POM and Nylon |
| Recommended EPA aircaps application distance | 15 to 20 cm., 5.9 to 7.9 inches |
| Recommended HVLP aircaps application distance | 12 to 15 cm., 4.7 to 6 inches |
6 reviews for Sagola 4600 HEX Spray Gun
Only logged in customers who have purchased this product may leave a review.
RELATED PRODUCTS
FEATURED PRODUCTS
Sagola 2100 XD Spray Gun
$245.00
Sagola 3600 XPT Spray Gun
$560.00
Sagola 4600 HEX Spray Gun
$960.00
BEST SELLING PRODUCTS
Cup Adapter | Sagola 4600
Price range: $29.00 through $55.00
Needle Nozzle Kit | Sagola 4600
Price range: $135.00 through $190.00
LATEST PRODUCTS
TOP RATED PRODUCTS
Sagola 4600 HEX Spray Gun
$960.00
Needle Nozzle Kit | Sagola 4600
Price range: $135.00 through $190.00
Thetriggerman954 –
I have been a fan of Sagola since the very first time I picked up a Sagola spray gun back in 2005. And just when you think they can’t get any better ” BAM ” You guys innovate and come with something even better. “SPRAY ON BROTHER 🤘🏼”
https://www.instagram.com/p/DVUGU__EWcx/
https://www.youtube.com/watch?v=-DJM-GLfaac
Saucy_painter –
I absolutely love my sagola 4600 hex! It saves on materials but doesn’t sacrifice speed, and it’s extremely well made and durable. I like how well it atomizes clear coat into finer droplets for a smoother finish and I also enjoy that the gun itself doesn’t weight a ton. I also really like how easy it is to clean.
https://www.instagram.com/p/DU61zClCZrb/
https://www.instagram.com/p/DVJRS_ojXsf/
https://www.instagram.com/p/DVwuUk2CZxw/
https://www.instagram.com/p/DWH7iQ7CZM0/
Olie Olie Paintz –
Honestly for me it’s the refinement I was looking for! Maintains speed but adds atomization to make clearing effortless!
https://www.instagram.com/olie__olie_paintz/
Inline Paint & Body –
The 4600 HEX is awesome. Effortless glass finishes. Nice smooth and efficient feel when spraying. The atomization is next level.
https://www.instagram.com/inlinepaintandbody/
Josh Refinish –
The Sagola 4600 HEX stands out immediately in how fast and controlled it feels in the hand. The material delivery is efficient without feeling overwhelming, which makes it easy to stay consistent panel to panel. What really impressed me is how balanced the gun feels, it allows for speed when you need it, but still gives you the control to lay material down clean without fighting it. It’s a tool that rewards good technique and makes high-level results more repeatable.
https://www.instagram.com/josh_refinish/
Michael Sena (verified owner) –
