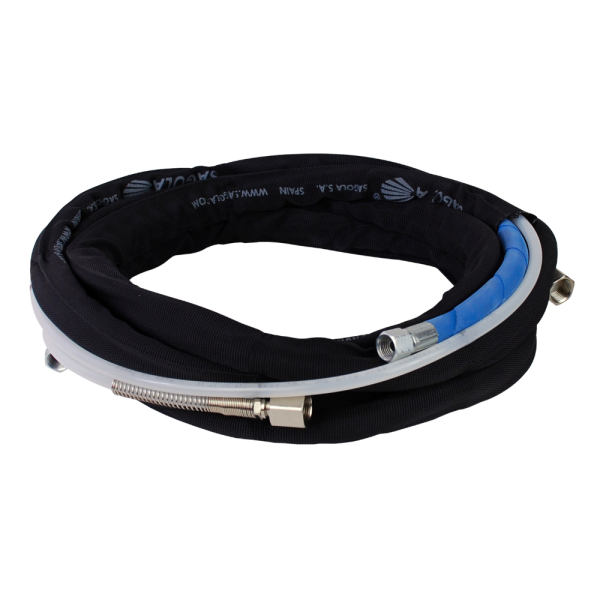

Sagola Combined Air and Product Hose

$174.25$574.50

Nylon product hose 6 x 8mm (0.24 x 0.31”) with quick connect terminals.

SKU: Sagola Air and Product Hose Category: Tag:
Clear

Description

Sagola Combined Air and Product Hose

The Sagola combined hose is ideal for low pressure pneumatic pumps and is supplied with a cover. It is made with WPDM rubber anti-static air hose 8 x 15mm (0.31 x 0.59″) with high security crimped ends 1/4″ F.

  • Quick Connection
  • Quality Manufacturing
  • Easy to Replace Parts

Combined Air & Product Hose

Additional information

Weight N/A
Size

5.9ft (1.8m), 16.4ft (5m), 24.6ft (7.5m), 32.8ft (10m), 49.2ft (15m), 65.6ft (20m)

Working Pressure

Product Hose: 18bar (261psi)
Air Hose: 20bar (290psi)
Protective Cover: –

Breakage Pressure

Product Hose: –
Air Hose: 60bar (870psi)
Protective Cover: –

Temperature Range

Product Hose: -20°C (-4°F) to 60°C (140°F)
Air Hose: 40°C to 120°C (-40°F to 248°F)
Protective Cover: -60°C (-76°F) to 125°C (257°F)

Dimensions (I/D x O/D)

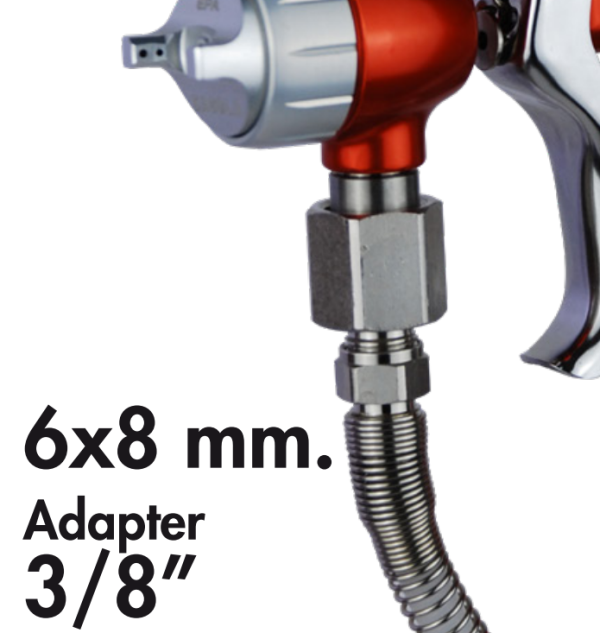

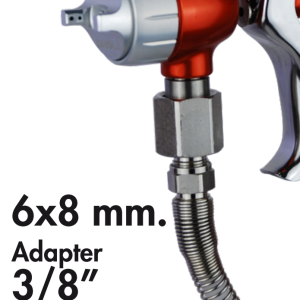

Product Hose: 6 x 8mm (0.24 x 0.31”)

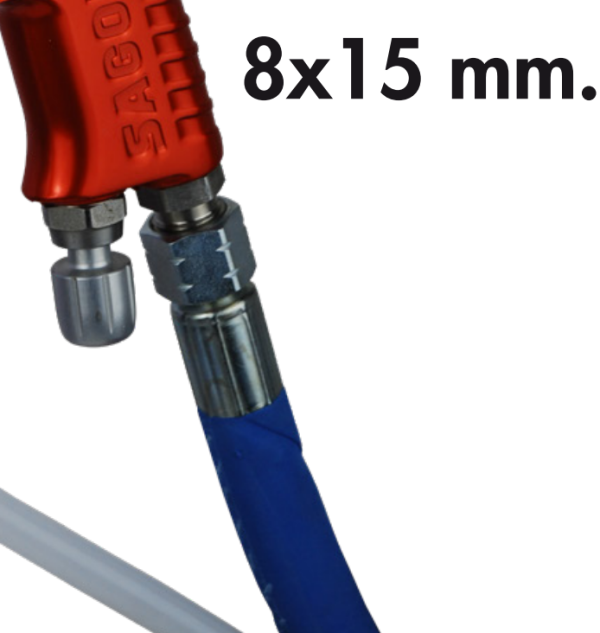

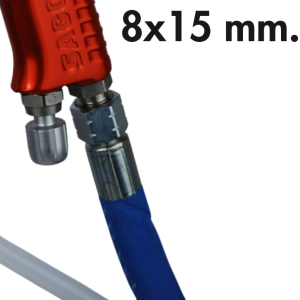

Air Hose: 8 x 15mm (0.31 x 0.59”)
Protective Cover: –

Material (inside)

Product Hose: Polyamide PA12
Air Hose: EPDM
Protective Cover: Polyester

Material (outside)

Product Hose: Polyamide PA12
Air Hose: Textile Reinforcement
Protective Cover: Polyester

Color

Product Hose: White
Air Hose: Blue
Protective Cover: Black

Anti-Static

Product Hose: –
Air Hose: Yes
Protective Cover: –

Connections

Product Hose: 9.53mm (3/8”) Female BSP
Air Hose: 6.35mm (1/4”) Female BSP
Protective Cover: –

Compliance

Product Hose: DIN 73378
Air Hose: 97/23/CE, UNE – EN 559
Protective Cover: RoHS, ISO 6945, MSHA
