Sagola X 4100 Gravity Spray Gun
$568.00
The X 4100 is a great light weight industrial gravity spray gun.
- Description
- Size Guide
- Additional information
- Reviews (1)
Description

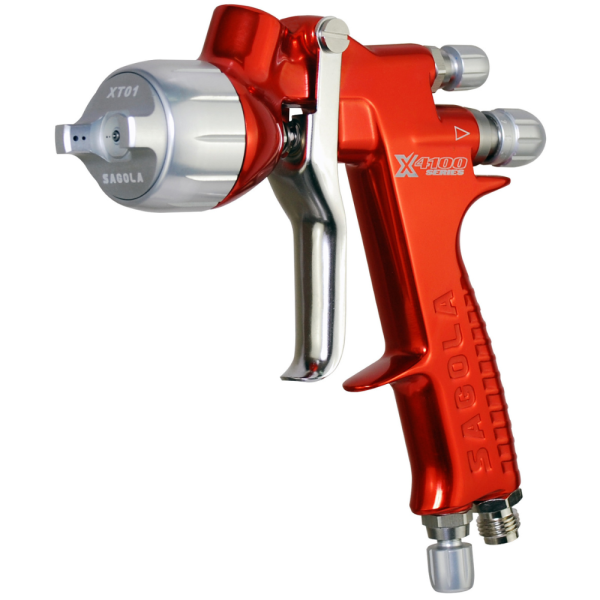

Sagola X 4100 Gravity Spray Gun
The Sagola X 4100 Gravity Gun is designed to be ergonomic and easy to use. This gun needs minimal maintenance with no seals or plastic parts in the product area. You can use any air cap and needle nozzle allowing for 10+ variations. Each kit is supplied with its own needle nozzle and air cap.
- Interchangeable Parts
- Consistent high quality finishes
- Low Maintenance
| Needle Nozzle & Air Caps | Ideal for use with: | Working Pressure Range | Air Consumption at 2bar | Output Flow (average) | Application Distance | Fan Width (max) |
| 1.30mm [XT01 Air Cap] |
Basecoats | 1.8 – 2.2bar (26 – 32psi) |
235l/min (8.30cfm) |
171g/min (6.03oz/min) |
18 – 20cm (7 – 7.9”) |
250mm (9.84”) |
| 1.40mm [XT01 Air Cap] |
Basecoats, Clearcoats Single Stage |
1.8 – 2.2bar (26 – 32psi) |
235l/min (8.30cfm) |
175g/min (6.17oz/min) |
18 – 20cm (7 – 7.9”) |
255mm (10.04”) |
| 1.60mm [XT01 Air Cap] |
Fillers | 1.8 – 2.2bar (26 – 32psi) |
235l/min (8.30cfm) |
209g/min (7.37oz/min) |
18 – 20cm (7 – 7.9”) |
285mm (11.2”) |
| 1.30mm [X96 Air Cap] |
Basecoats | 1.8 – 2.2bar (26 – 32psi) |
250l/min (8.83cfm) |
177g/min (6.2oz/min) |
18 – 20cm (7 – 7.9”) |
260mm (10.24”) |
| 1.40mm [X96 Air Cap] |
Clearcoats Single Stage |
1.8 – 2.2bar (26 – 32psi) |
250l/min (8.83cfm) |
178g/min (6.3oz/min) |
18 – 20cm (7 – 7.9”) |
270mm (10.63”) |
| 1.60mm [X96 Air Cap] |
Fillers | 1.8 – 2.2bar (26 – 32psi) |
250l/min (8.83cfm) |
216g/min (7.6oz/min) |
18 – 20cm (7 – 7.9”) |
310mm (12.2”) |
| 1.80mm [X96 Air Cap] |
Fillers | 1.8 – 2.2bar (26 – 32psi) |
250l/min (8.83cfm) |
293g/min (10.3oz/min) |
18 – 20cm (7 – 7.9”) |
380mm (15.0”) |
| 1.30mm [XT03 HVLP Air Cap] |
Basecoats | 1.8 – 2.0bar (26 – 29psi) |
465l/min (16.42cfm) |
139g/min (4.9oz/min) |
12 – 15cm (4.7 – 5.9”) |
240mm (9.45”) |
| 1.40mm [XT03 HVLP Air Cap] |
Basecoats | 1.8 – 2.0bar (26 – 29psi) |
465l/min (16.42cfm) |
143g/min (5.04oz/min) |
12 – 15cm (4.7 – 5.9”) |
245mm (9.65”) |
| 1.60mm [XT03 HVLP Air Cap] |
Fillers | 1.8 – 2.0bar (26 – 29psi) |
465l/min (16.42cfm) |
165g/min (5.82oz/min) |
12 – 15cm (4.7 – 5.9”) |
270mm (10.63”) |
| 1.80mm [XT03 HVLP Air Cap] |
Fillers | 1.8 – 2.0bar (26 – 29psi) |
465l/min (16.42cfm) |
202g/min (7.13oz/min) |
12 – 15cm (4.7 – 5.9”) |
295mm (11.61”) |
| 2.20mm [64S Air Cap] |
Putty Fillers | 2.0 – 2.5bar (29 – 36psi) |
305l/min (10.77cfm) |
290g/min (10.23oz/min) |
18 – 20cm (7 – 7.9”) |
280mm (11.02”) |
Additional information
| Weight | N/A |
|---|---|
| Air Cap | 96 Air Cap, XT01 Air Cap, XT03 Air Cap, 64S Air Cap, 96 Air Cap |
| NEEDLE/NOZZLE | 1.20mm, 1.30mm, 1.40mm, 1.60mm, 1.80mm, 2.20mm |
| Dimensions | 17.2 x 1.9 x 17.3cm (6.77 x 0.75 x 6.81”) |
| Weight (without cup) | 496g (1.09lbs) |
| Air Inlet Couplings | 6.35mm (1/4”) Male BSP |
| Paint Filter | 100 mesh |
| Design Pressure | 8bar (116psi) |
| Working Pressure | 2 bar (29 psi) |
