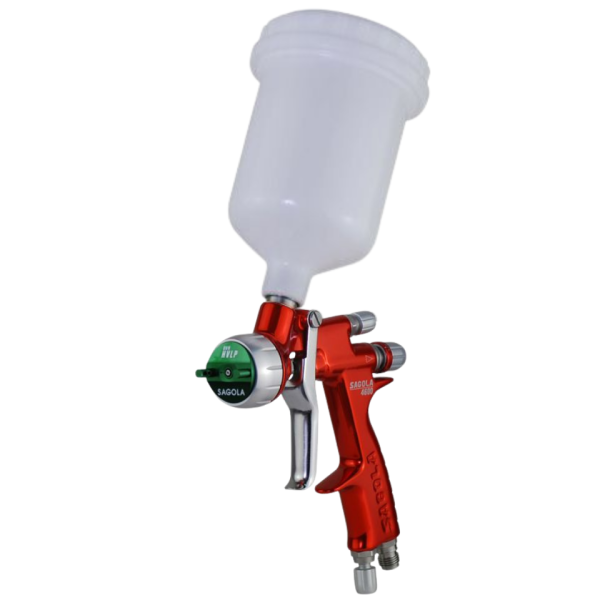

Sagola 4600 HVLP Spray Gun

$719.00$949.00

The Sagola 4600 Gravity spray gun is the perfect gun for body-shop professionals. It provides industry leading material transfer rates with a high quality finish.

SKU: Sagola 4600 HVLP Category: Tags: ,
Clear

Description

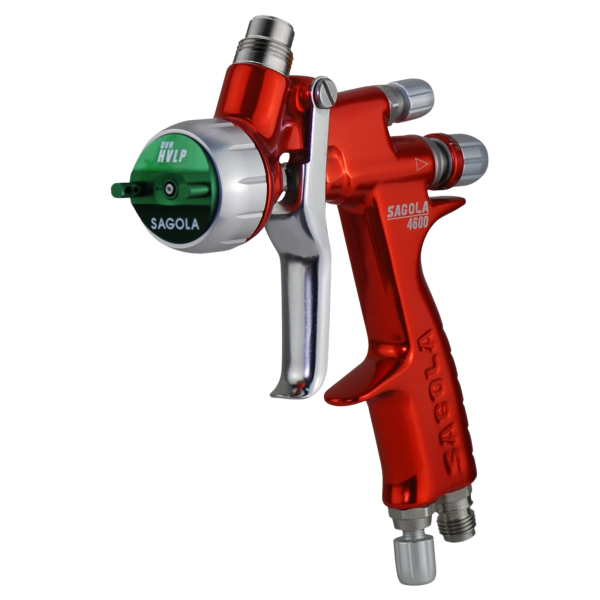

Sagola 4600 HVLP Gravity Spray Gun

Discover what sets the Sagola 4600 apart—designed for top performance and more…

This leading spray gun delivers exceptionally even and consistent paint coverage, perfect for challenging base colors including metallics, silver, and pearls. It effectively reduces typical painting issues like shadows, patch coats, and striping.

Experience increased efficiency with reduced paint, air, and time usage—cutting costs and enhancing your profitability on every job. Perfect for our customers across the USA.

  • Interchangeable Parts
  • Consistent high quality finishes
  • Low Maintenance

Sagola 4600 Manual

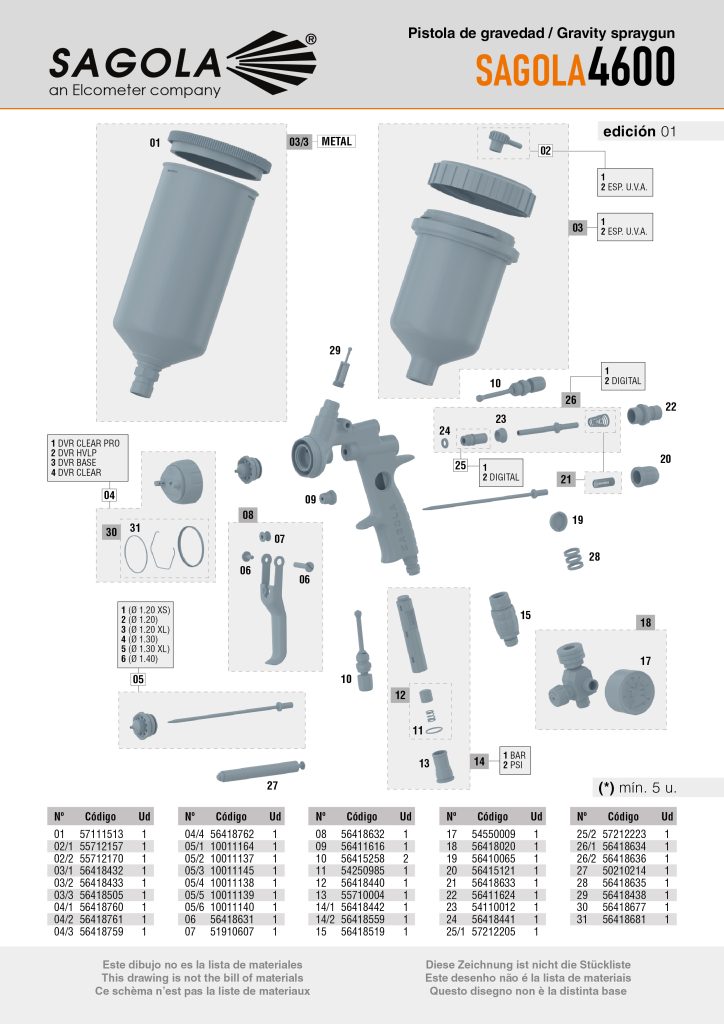

Sagola 4600 Exploded View

Air Cap Specifications:
Base Air Cap Clear Air Cap Clear Pro Air Cap HVLP Air Cap
Output Flow 191 – 227 g/min / 6.7 – 8 oz/min 170 – 198 g/min / 6 – 7 oz/min 185 – 219 g/min / 6.5 – 7.7 oz/min 196 – 229 g/min / 7 – 8 oz/min
Air Consumption 280 L/min / 9.88 cfm 450 L/min / 15.89 cfm 295 L/min / 10.42 cfm 315 L/min / 11.12 cfm
Fan Width 290 – 315 cm / 11.4 – 12.4” 290 – 325 cm / 11.4 – 12.8” / 275 – 295 cm / 10.8 – 11.6” 285 – 310 cm / 11.2 – 12.2”
Application Distance 18 – 20 cm / 7 – 7.9” 15 – 18 cm / 6 – 7” 18 – 20 cm / 7 – 7.9” 18 – 20 cm / 7 – 7.9”
Air Inlet Pressure 1.8 – 2.0 bar / 26.1 – 29 psi 2.0 bar / 29 psi 2.2 bar / 32 psi 2.2 bar / 32 psi

Additional information

Weight N/A
Needle/Nozzle

1.20mm, 1.25mm, 1.30mm, 1.35mm, 1.40mm

Cup Capacity

650ml (22fl oz)

Cup Type

Removable Anti-Drip System

Air Inlet Couplings

6.35mm (1/4”) Male BSP

Paint Filter

80 Mesh

Weight with Supplied Cup

675g (1.49lbs)

Weight without Cup

492.8g (1.09lbs)

Sound Pressure Level (Average)

80 dB

Style

Non-Digital, Digital
