Sagola 3400 Compact
$535.00
The Sagola 3400 compact is the perfect gun for spot repair with its high transfer efficiency and low air consumption.
- Description
- Size Guide
- Additional information
- Reviews (0)
Description

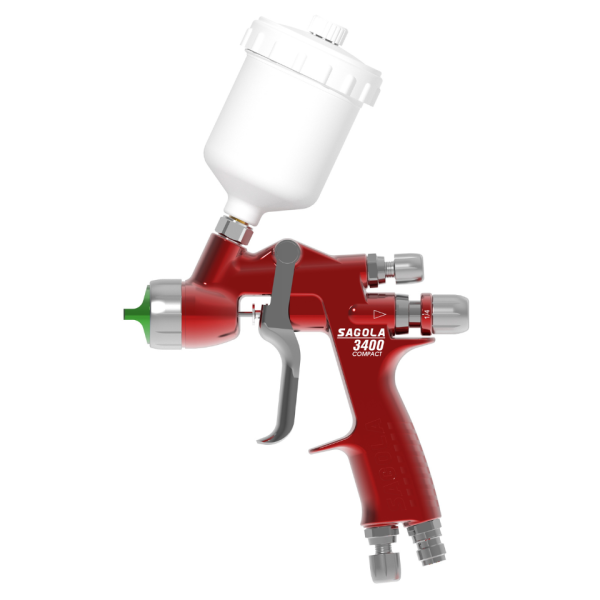

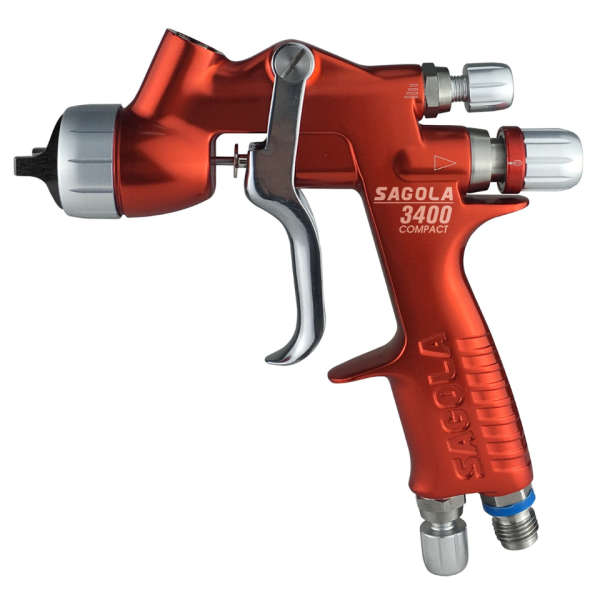

Sagola 3400 Compact Spray Gun | Small Size, Pro Finish
The Sagola 3400 Compact is a lightweight, gravity-feed refinishing gun engineered for spot work, SMART repair, and the same high-quality finish as a full-size gun.
Its reduced dimensions and balanced ergonomics make it agile for smaller hands, bumpers, and hard-to-reach panels. A 28.5 cm (11.22″) fan and high-transfer aluminum air caps keep coverage wide and even.
Built from anodized forged aluminum with a metal-on-metal fluid path (no gaskets, rubber, or plastic in the product area) and no air diffusors, it’s made for daily booth work in automotive and industrial shops.
Why Pros Pick It
- Compact gun, large fan: up to 28.5 cm (11.22″) of pattern from a gun built for tight spaces—faster coverage on spots, panels, and complex surfaces.
- Metal-on-metal fluid path: no gaskets, rubber, or plastic in the product area; designed without air diffusors for easier cleaning and fewer wear points.

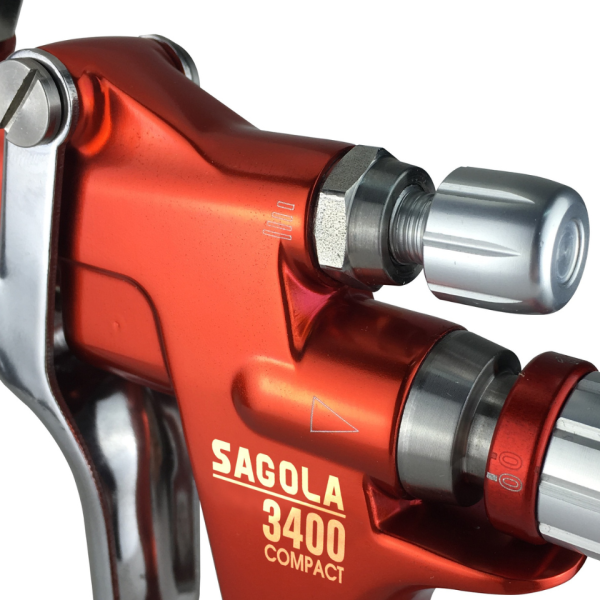

- Dialed-in control: independent product, air, and fan regulators plus a Soft Flow progressive valve & run low pressures without starving the pattern.
- Waterborne-ready: tested and developed on waterborne products; color-coded Compact BASE, CLEAR, HVLP, and XTECH air caps.
- Clean-air ready: pairs best with coalescing filtration; antistatic hoses recommended in ATEX zones.
Ideal Uses
- Automotive refinish (spot repair, SMART repair, basecoat, clear, waterborne)
- Hard-to-reach areas, bumpers, and complex surfaces
- Primers, UV products, adhesives, and varnishes needing consistent film builds
Quick Specs
| Weight (w/o cup) | 365 g (0.80 lb) |
|---|---|
| Weight with 125 ml cup | 445.5 g (0.98 lb) |
| Dimensions (w/o cup) | 156 × 18 × 158 mm (6.14 × 0.71 × 6.22″) |
| Max air pressure | 4 bar (58 psi) |
| Recommended working pressure | 1.4–2.2 bar (20.3–31.9 psi) |
| HVLP reference | ~1.8 bar (26 psi) |
| Air inlet | 1/4″ BSP |
| Product inlet | M12 × 1.5 F |
| Materials in contact with product |
Anodized aluminum, stainless steel, PTFE, POM, Nylon |
| Typical spray distance | CLEAR / BASE / XTECH 15–20 cm (5.9-7.9″); HVLP 12–15 cm (5–6″) |
| Operating temp | 0–60 °C (32–140 °F) |
Aircaps, Tips & Needles

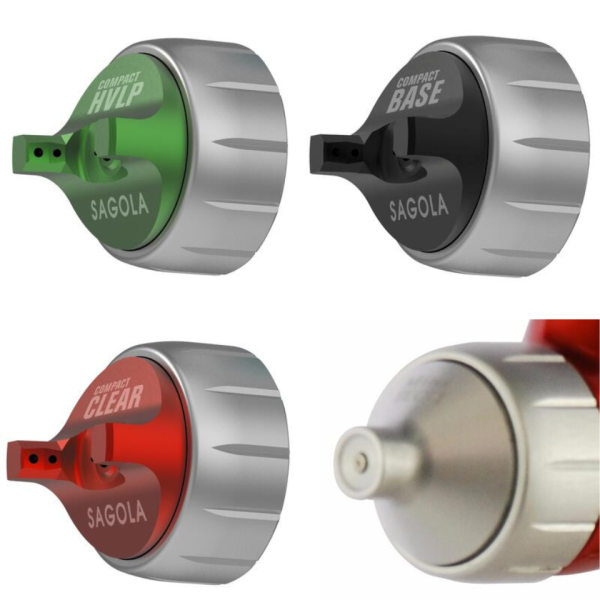

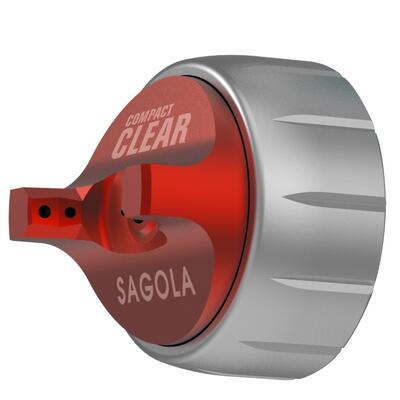

- Aircaps: Compact BASE, Compact CLEAR, Compact HVLP, Compact XTECH
- Tip/needle sets: 0.60 (XTECH), 0.80, 1.00, 1.20, 1.20 UV, 1.30, 1.40 (swap in minutes)

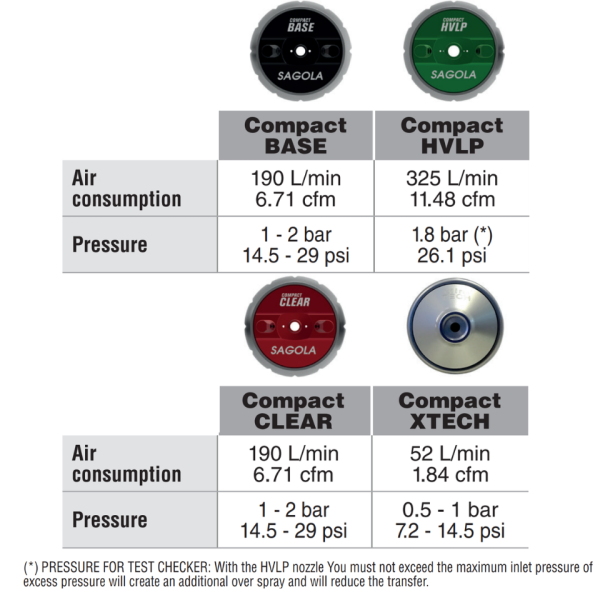

- Air consumption (ref): Compact HVLP ~325 L/min; Compact BASE / CLEAR ~190 L/min; Compact XTECH ~52 L/min (at stated test pressures)
What’s in the Box
- Sagola 3400 Compact spray gun (air cap, nozzle & needle)
- Reusable paint cup (125 ml or 650 ml, depending on kit)
- Air valve wrench & cleaning brush
- Color-coded identification rings
- Universal maintenance wrench
- Online manual
Pro Setup Tips
- Start at ~2.0 bar inlet (HVLP: ~1.8 bar), fan wide open; trim pressure to the lowest that achieves your finish.
- Keep perpendicular travel and consistent gun speed to maximize transfer and avoid dry spray—especially in tight quarters.
- For waterborne or hot/dry booths, step up tip size +0.1–0.2 mm and slightly round the fan to load the core. Use Compact XTECH 0.60–1.00 for lettering and small retouches.
Small in Size, Big on Precision
Compact footprint with up to a 28.5 cm (11.22″) fan—built for spot, SMART repair, and hard-to-reach panels without giving up finish quality.
FAQs
What pressures should I run?
General work: 1.4–2.2 bar (20.3–31.9 psi). HVLP reference: ~1.8 bar (26 psi). Compact XTECH: 0.5–1.0 bar (7.2–14.5 psi). Never exceed 4 bar max.
Which tip for base vs. clear?
Common picks: Compact BASE 1.00 / 1.20 for base & waterborne; Compact CLEAR 1.20 for UHS clear; Compact HVLP 1.20–1.40 for primers. Compact XTECH 0.60 / 1.00 for lettering and small retouches. Match to product viscosity and booth conditions.
How do I keep it in spec?
Clean after each use, lightly lubricate moving threads, and use OEM parts. Metal-on-metal fluid path; solvent-resistant internals; avoid halogenated solvents. Warranty: 3 years.
- Interchangeable Parts
- Consistent high quality finishes
- Low Maintenance
Detailed recommendations
|
|
||||||||||||||||||||||||
|
|
Always confirm the final setup against the coating manufacturer’s technical data sheet.
Additional information
| Weight | 2 lbs |
|---|---|
| Air Cap | XTech, Base, Clear, HVLP |
| Needle/Nozzle | 0.60mm, 0.80mm, 1.00mm, 1.20mm, 1.30mm, 1.40mm |
| Cup Type | 125ml, 125ml UV, 650ml |
| Air Inlet Couplings | 6.35mm (1/4”) Male BSP |
| Paint Filter | 100 mesh |
| Weight with Supplied Cup | 125ml Cup: 445.5g (0.98lbs), 500ml Cup: 552.75g (1.22lbs) |
| Weight without Cup | 365g (0.80lbs) |
| Dimensions without Cup (W x D x H) | 156.4 x 18 x 158.8mm (6.16 x 0.71 x 6.25") |
| Sound Pressure Level (Average) | 80 dB |
| Compliance | ATEX II 2G T60°C X (Directive 94/9/CE) |
