Sagola Classic Pro XD Spray Gun

$192.75$199.50

The Classic Pro XD  is the ideal gun for fillers and sanding surfacers.

SKU: Sagola Classic Pro XD Category: Tags: ,
Clear

Description

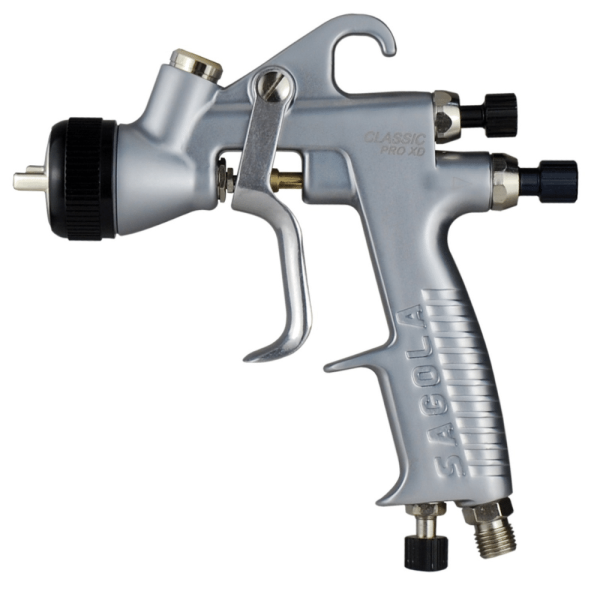

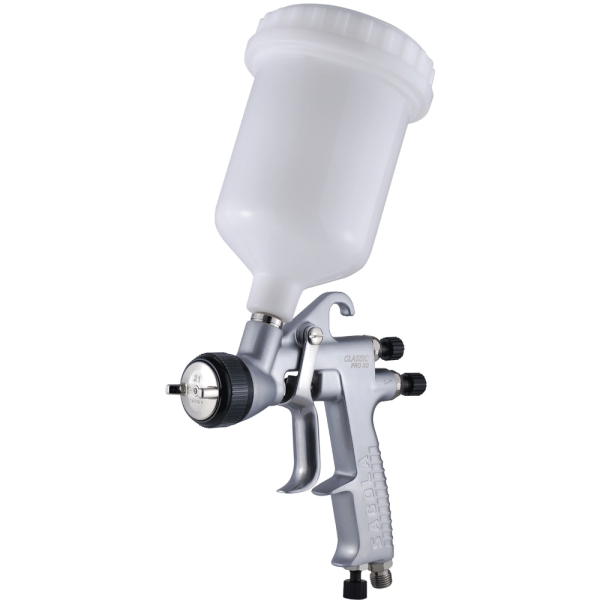

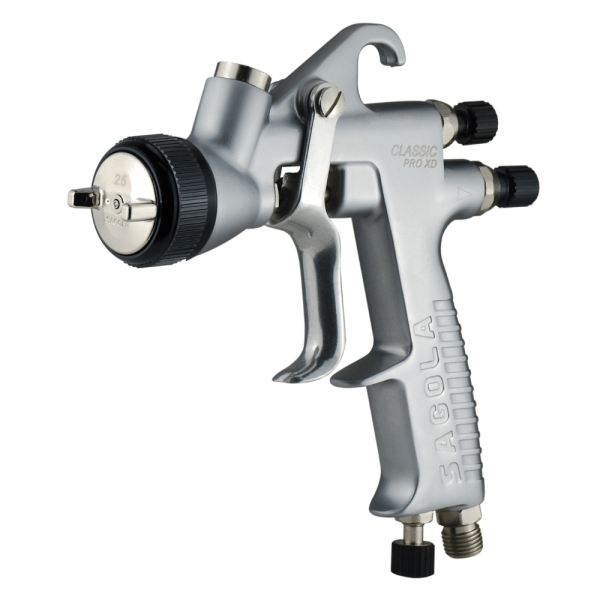

Sagola Classic Pro XD Gravity Spray Gun

The Sagola Classic Pro XD is made of stainless steel and has a matt chrome body. This gun is designed with an internal air distributor and has no joints between the air and paint. This gun is great for a wide range of application solutions and is ideal for fillers and sanding surfacers products.

  • Interchangeable Parts
  • Consistent high quality finishes
  • Low Maintenance

Classic Pro XD Manual

Needle Nozzle & Air Caps Ideal for use with: Working Pressure Range Air Consumption at 2bar Output Flow (average) Application Distance Fan Width (Max)
1.6mm
[21EPA]
Sanding surfacers 1.5 – 2.0bar
(22 – 29psi)
225LPM
(7.95CFM)
147g/min
(5.2oz/min)
18 – 20cm
(7 – 7.9”)
290mm
(11.4”)
1.6mm
[HVLP]
Sanding surfacers 1.5 – 2.0bar
(22 – 29psi)
355LPM
(12.54CFM)
202g/min
(7.13oz/min)
12 – 15cm
(4.7 – 5.9”)
250mm
(9.8”)
1.8mm
[21EPA]
Sanding surfacers 1.5 – 2.0bar
(22 – 29psi)
225l/min
(7.9cfm)
179g/min
(6.3oz/min)
18 – 20cm
(7 – 7.9”)
320mm
(12.6”)
1.8mm
[HVLP]
Sanding surfacers 1.5 – 2.0bar
(22 – 29psi)
355LPM
(12.54CFM)
235g/min
(8.29oz/min)
12 – 15cm
(4.7 – 5.9”)
280mm
(11.0”)
2.0mm
[25]
Filler coats 1.8 – 2.5bar
(26 – 36psi)
155LPM
(5.47CFM)
218g/min
(7.69oz/min)
18 – 20cm
(7 – 7.9”)
280mm
(11.0”)
2.5mm
[36]
Filler coats 1.8 – 2.5bar
(26 – 36psi)
205l/min
(7.24cfm)
249g/min
(8.78oz/min)
18 – 20cm
(7 – 7.9”)
230mm
(9.0”)
2.8mm
[28]
Filler coats 1.8 – 2.5bar
(26 – 36psi)
240LPM
(8.48CFM)
263g/min
(9.29oz/min)
18 – 20cm
(7 – 7.9”)
240mm
(9.4”)

Additional information

Weight N/A
Air Cap

21 EPA Air Cap, 25 Air Cap, 28 Air Cap, 36 Air Cap, HVLP Air Cap

NEEDLE/NOZZLE

1.40mm, 1.60mm, 1.80mm, 2.00mm, 2.50mm, 2.80mm

Cup Capacity

650ml (22fl oz)

Air Inlet Couplings

6.35mm (1/4”) Male BSP

Weight with Supplied Cup

665g (1.47lbs)

Dimensions without Cup (W x D x H)

179.14 x 19 x 176.8mm (7.05 x 0.75 x 6.96”)

Packing List

Sagola Classic Pro XD Gravity Spray Gun with aircap, needle & nozzle kit (supplied fitted), 650ml (22fl oz) Reusable Plastic Gravity Cup (product filter not supplied), Hexagonal Wrench & Cleaning Brush

Cup Type

Removable Anti-Drip System

Paint Filter

Not Supplied

Weight without Cup

480.8g (1.06lbs)
