Sagola 3600 XPT Spray Gun
$560.00
Sagola 3600 XPT spray gun—smooth, pro-quality finish with less paint waste and easy dial-in controls. Great for base or clear on cars, wood, and more.
- Description
- Additional information
- Reviews (0)
Description

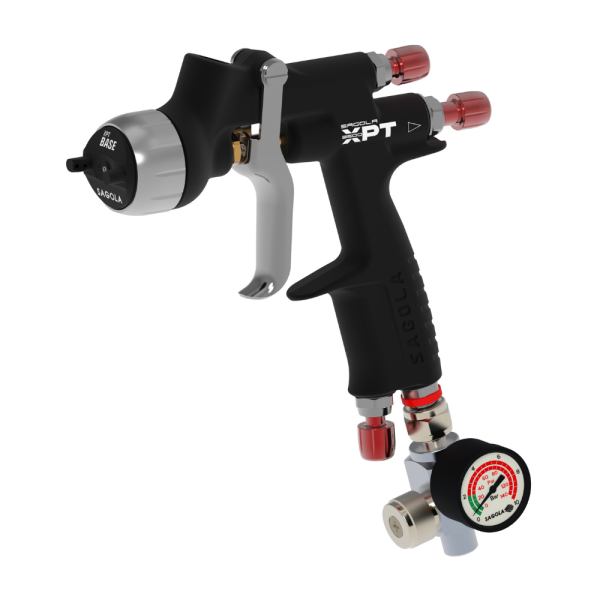

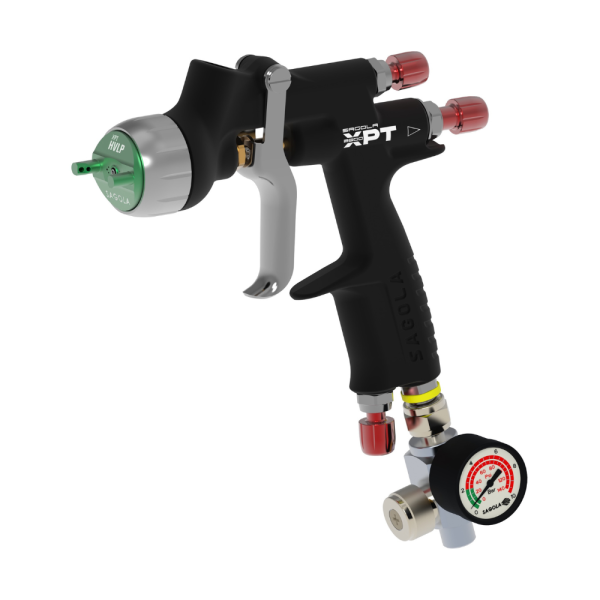

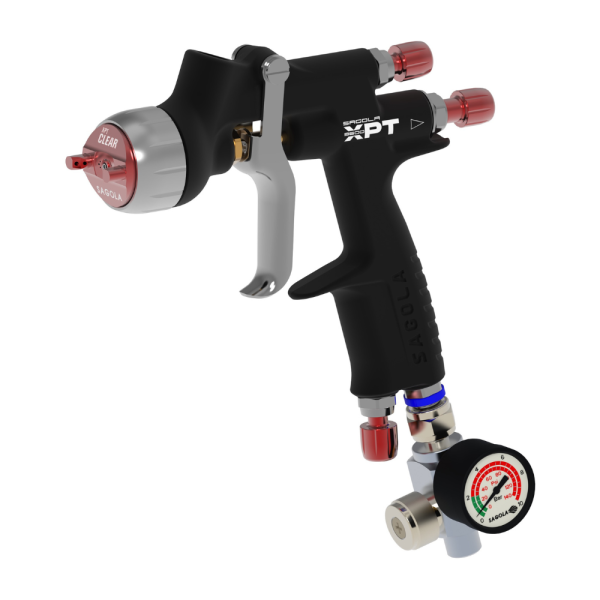

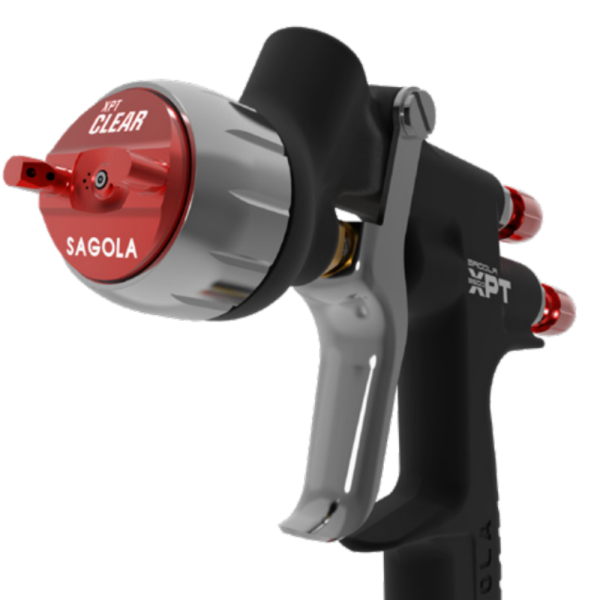

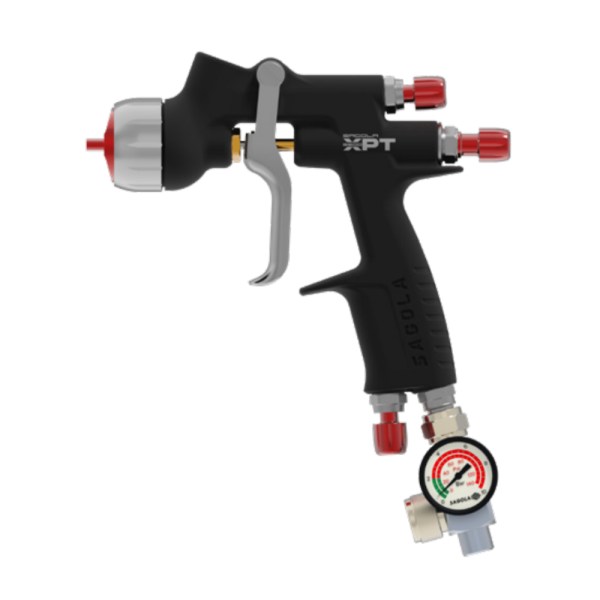

Sagola 3600 XPT Gravity-Feed Spray Gun
The Sagola 3600 XPT is a pro-grade gravity spray gun built for clean, repeatable finishes with less waste. Tuned atomization, precise fan/product control, and rugged wetted materials make it a reliable choice for automotive refinish, wood finishing, plastics, and general industrial coatings.
Why finishers choose the 3600 XPT
- Factory-matched aircaps—XPT CLEAR, XPT BASE, and XPT HVLP—so you can dial in atomization for clear, base, or compliant work.
- Real-world pressure guidance: recommended 1.4–2.2 bar (20.3–31.9 psi); HVLP 1.8 bar (26 psi) for transfer efficiency and control.
- Air consumption you can plan for—~285 L/min on CLEAR/BASE and ~360 L/min on HVLP.
- Built to last: wetted parts in anodized aluminum, stainless steel, PTFE, POM, and nylon
Application sweet spot
Run the gun in its recommended window—start near 2.0 bar for CLEAR/BASE, or 1.8 bar for HVLP—then trim fan and product for pattern and flow. Keep the gun perpendicular and within the advised distance: EPA 15–20 cm; HVLP 12–15 cm for best transfer and finish.
Technical highlights

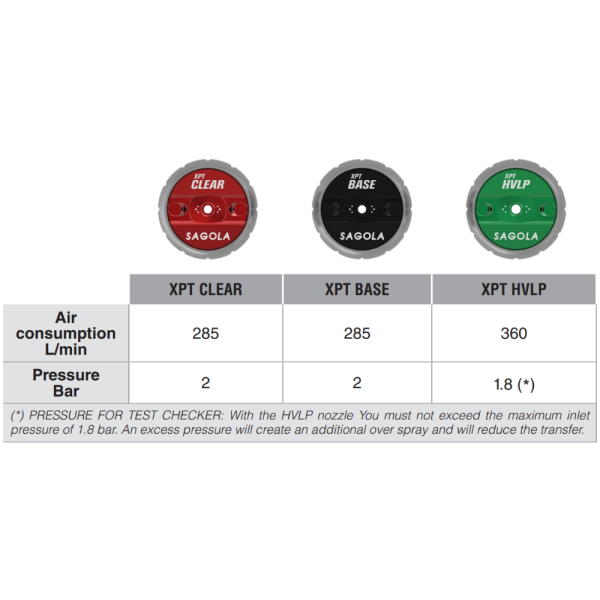

| Aircaps | XPT CLEAR / XPT BASE / XPT HVLP |
|---|---|
| Air consumption | ~285 L/min (CLEAR/BASE); ~360 L/min (HVLP) |
| Recommended pressure | 1.4–2.2 bar (20.3–31.9 psi); HVLP 1.8 bar (26 psi) |
| Max inlet pressure | 4 bar (58 psi) |
| Application distance | EPA 15–20 cm; HVLP 12–15 cm |
| Tip/needle options | Ø 1.2 / 1.3 / 1.4 (kits) |
| Air inlet | BSP 1/4″ M |
| Materials (wetted) | Anodized aluminum, stainless steel, PTFE, POM, nylon |
| Operating temp | 0–60 °C (32–140 °F) |
| ATEX | Non-electrical II 2G T4 x (use earthing/static-free hoses) |
Setup tips (fast, consistent results)
- Open fan and product, spray a test pass, then close down to target flow/pattern—don’t chase finish with excess pressure.
- Use clean, dry air with coalescing filtration; size compressor volume to match your chosen aircap
- Maintain perpendicular gun travel and consistent distance to maximize transfer.
Safety & compliance
Do not exceed 4 bar static pressure. For ATEX areas, ground the equipment and use static-free air hoses. Follow manufacturer safety guidance for coating materials and thinners.
- Interchangeable Parts
- Consistent high quality finishes
- Low Maintenance
Additional information
| Weight | N/A |
|---|---|
| Air Cap | Base, Clear, HVLP |
| Needle/Nozzle | 1.20mm, 1.30mm, 1.40mm |
| Weight | 0.97 lb |
| Dimensions | 6.5 x 0.75 x 6.96 " |
| Air Inlet | BSP 1/4 M |
| Temperature range | 32 to 140F |
| Product Inlet | M12 x 1.5 F |
| Maximum Air pressure | 4 bar, 58 psi |
| Recommended air pressure | 1.4 to 2.2 bar, 20.3 to 31.9 psi |
| Recommended air pressure HVLP | 1.8 bar, 26 psi |
| Materials in contact with product | Anodized aluminum, STAINLESS steel, PTFE, POM and Nylon |
| Recommended EPA aircaps application distance | 15 to 20 cm., 5.9 to 7.9 inches |
| Recommended HVLP aircaps application distance | 12 to 15 cm., 4.7 to 6 inches |
Only logged in customers who have purchased this product may leave a review.
RELATED PRODUCTS

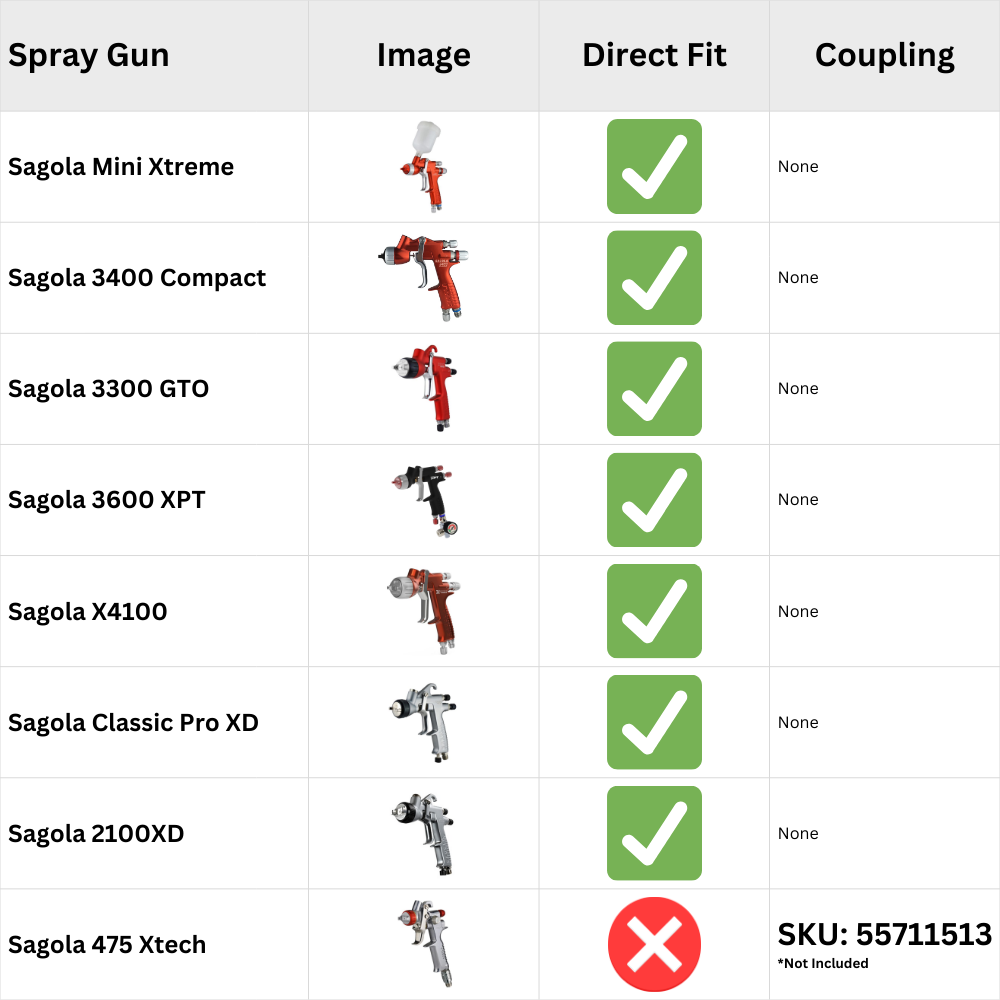

Cup Adapter | Sagola 3600 XPT, 3400 Mini, 3300 GTO, 2100 XD, X 4100
