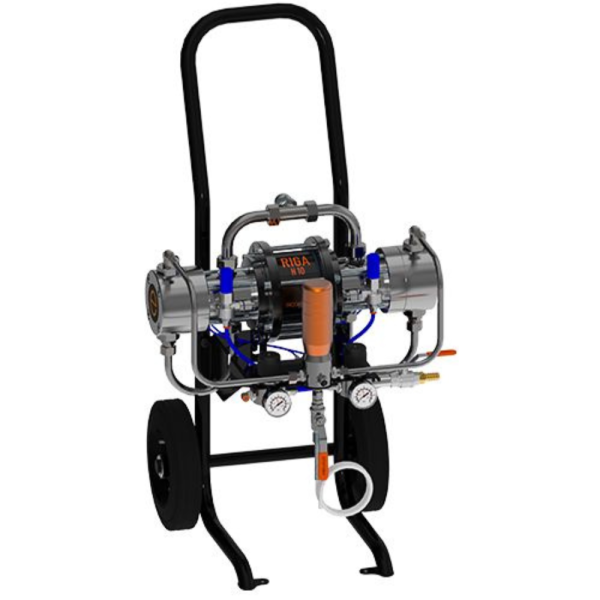

Elcometer RIGA 25:1 Horizontal Bellows Pump H25
$8,930.00
Ideal for automated paint lines where performance, reliability and coating stability matter most.
- Description
- Additional information
- Reviews (0)
Description
Elcometer RIGA H25 Horizontal Bellows Pump
The Elcometer RIGA Horizontal Bellows Pump is a powerful air-assisted airless horizontal bellows pump, engineered for precision and reliability in demanding applications. Its smooth bellows action ensures uniform material flow, making it ideal for multi-spray gun feeding capabilities, particularly in automated paint lines. The closed bellows system is designed to handle shear-sensitive, moisture-sensitive materials, and UV coatings, ensuring no air or moisture contamination. This pump is a must-have for those seeking durable performance and coating stability.
Technical Information
- Air Motor: Low maintenance 53cfm (14.96lpm) air motor for large automated paint lines.
- Pump Fluid Section: Manufactured from stainless steel to handle both solvent and water-based coatings.
- Flow Rate: High flow 9.75lpm (2.58gpm) engineered to supply multiple guns.
- Bellows Action: Smooth operation for uniform paint flow, ideal for shear-sensitive coatings.
- Anti-Pulse Fluid Filter: Fitted as standard for constant spray patterns and uniform film thickness.
- Enclosed System: No exposed seals or packing, reducing maintenance and contamination risks.

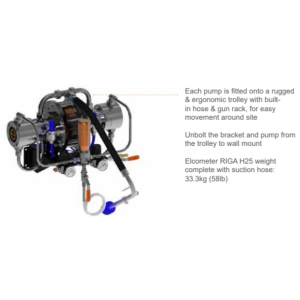

- Mobility: Rugged, ergonomic trolley with built-in hose and gun rack, easily wall mountable.
- Weight: 33.3kg (58lb) complete with suction hose.
Warranty Information
All Elcometer-branded fluid application systems now come with a
1-year warranty, extendable by an additional 12 months
through online registration.
1-year warranty, extendable by an additional 12 months
through online registration.
| File | Link |
|---|---|
| Pump Files | |
|
Riga Bellows Pump Datasheet
|
Open Data Sheet |
|
Horizontal Riga Bellows Pump (H) Multi-lingual Instructional Manual
|
Open Manual |
|
Vertical Riga Bellows Pump (V25) Multi-lingual Instructional Manual
|
Open Manual |
| Spray Gun Files | |
|
Mini Xtreme Mix — Data Sheet
|
Open Data Sheet |
Additional information
| Weight | 98.1 lbs |
|---|---|
| Dimensions | 13.08 × 11.56 × 20.74 in |
| Ratio | 25:1 |
| Maximum fluid particle size | 0.25mm (10mils) |
| Fluid temperature range | 4.4 – 60°C (40 – 140°F) |
| Fluid inlet size | Metric 36 x 2 (Male) |
| Fluid outlet size | 1/4” BSP Male |
| Seats | Stainless Steel |
| Balls | Stainless Steel |
| Centre Section | Hard Chrome Stainless Steel |
| Packing Kit (Top) | Polyethylene, Stainless Steel |
| Pump Body / Cylinder Housing | Aluminum |
| Air Pressure Operating Range | 1-6bar (14-87psi) |
| Air Consumption at 60 bar (870 psi) & 2.4 CPM | 14.96lpm (0.53cfm) |
| Maximum Air Inlet Pressure | 6bar (87psi) |
| Air Inlet | 1/4” BSP Female |
| Air Exhaust / Silencer Port | 1/4” BSP Female |
| Compressor Requirements (Minimum) | 14.96lpm (0.53cfm) |
| Ambient Air Temperature Operating Range | -10 – 60°C (14 – 140°F) |
| Maximum Fluid Outlet Working Pressure | 148bar (2146psi) |
| Stroke Length | 42mm (1.65") |
| Product Output per Cycle | 105.55 cc (3.54 fl oz) |
| Free Flow Delivery @ 60 CPM | 9.75 lpm (2.58 gpm) |
| Weight (Pump only) | 31kg (68.4lb) |
| Weight (Wall Mount with Suction Hose) | 33.3kg (58lb) |
| Weight (Cart Mount with Suction Hose) | 44.5kg (98.1lb) |
| Dimensions (Cart Mount) | 543 x 527 x 999mm (21.38 x 20.74 x 39.33") |
| Dimensions (Wall Mount) | 543 x 359 x 516mm (21.38 x 14.36 x 20.33") |
