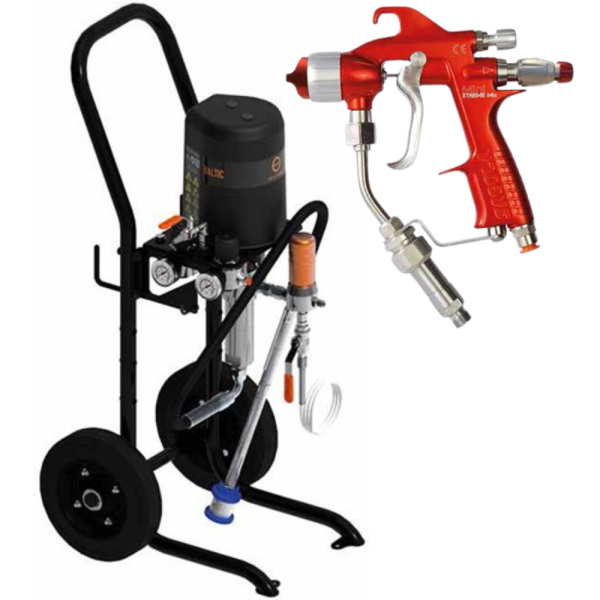

Baltic Air Assisted Airless 32:1 Pump & Gun

Baltic Air Assisted Airless 32:1 Pump In Action

Elcometer Baltic Air Assisted Airless 32:1 Pump | BA32-MXM-1140

0 out of 5

( There are no reviews yet. )

$4,495.00

The Ideal Air Assisted Airless Pump Ideal for wood & metal workshops.

Availability: 4 in stock SKU: 30932052 Category: Air-Assisted Airless (AAA) Pumps

Description
Additional information
Reviews (0)

Description

Elcometer Baltic Air Assisted Airless 32:1 Pump Overview

Product Highlights

Elcometer BALTIC Air Assisted Airless Pumps

High Performance: The Elcometer BALTIC BA32-MXM-1140 offers a 32:1 ratio, providing consistent, pulse-free spray performance. It supports larger spray tips up to 0.45mm (0.018″) and accommodates longer fluid hoses, ensuring excellent finish quality even in demanding conditions.
Durable Construction: Built with high-quality materials including a durable pump with tungsten carbide and stainless steel ball, the pump ensures longevity and minimal maintenance requirements.
Efficient and Quiet Operation: With a low air consumption of 1.03cfm (29.3lpm) and reduced noise levels, the BA32-MXM-1140 helps lower operating costs while maintaining a comfortable working environment.
Versatile Configuration: Available as a trolley-mounted or wall-mounted system, with options for suction hose or gravity-fed hopper. Compatible with a wide range of solvent and waterborne coatings, including primers, lacquers, and epoxies.

What’s Included

Elcometer BALTIC BA32-MXM-1140 Air Assisted Airless Pump Package includes:

Trolley-mounted BA32 Pump with anti-pulse chamber
7.5m (24.6ft) air and product hose with protective cover
Sagola Mini Xtreme Mix Spray Gun with fixed 11/40 spray tip

Warranty Information

All Elcometer-branded fluid application systems now come with a
1-year warranty, extendable by an additional 12 months
through online registration.

Feature	BA32-MXM-1140 Details
Pump Ratio	32:1
Max Particle Size in Fluid	0.25 mm (10 mils)
Operating Temperature Range	4.4°C – 60°C (40°F – 140°F)
Inlet Connection Size	1/2” BSP Male
Outlet Connection Size	1/4” BSP Male
Suitable for Use With	Solvent and water based products

File	Link
Pump Files
Baltic Air Assisted Airless Pump Datasheet PDF • Specifications overview	Open Data Sheet
Baltic 30 Air Assisted Airless Multi-lingual Instructional Manual PDF • Install, use & maintenance	Open Manual
Baltic 15-32 Air Assisted Airless Multi-lingual Instructional Manual PDF • Compliance statement	Open DoC
Spray Gun Files
Mini Xtreme Mix — Data Sheet PDF • Spray gun specifications	Open Data Sheet

Additional information

Weight	60 lbs
Dimensions	13.08 × 11.56 × 20.74 in
Ratio	32:1
Maximum fluid particle size	0.25mm (10mils)
Fluid temperature range	4.4 – 60°C (40 – 140°F)
Fluid inlet size	1/2” BSP Male
Fluid outlet size	1/4” BSP Male
Compatible Products that can be pumped	Solvent and water based products
Seats	Polyamide
Balls	Stainless Steel
Pump Body / Cylinder Housing	Aluminum
Air Pressure Operating Range	1-7bar (14-101psi)
Air consumption at 100bar (1450psi) & 6.5 CPM (BA32-BA15) 10 CPM (BA30)	29.3lpm (1.03cfm)
Maximum Air Inlet Pressure	7bar (101psi)
Air Inlet	1/4” BSP Female
Air Exhaust / Silencer Port	1/4” BSP Female
Ambient Air Temperature Operating Range	-10 – 60°C (14 – 140°F)
Maximum Fluid Outlet Working Pressure	226bar (3278psi)
Product Output per Cycle	45 cc (1.54 fl oz)
Free Flow Delivery @ 60 CPM	2.7 lpm (90.7 US fl oz)
Weight (Pump only)	10kg (22lb)
Weight (Wall Mount with Suction Hose)	12.3kg (27.1lb)
Weight (Cart Mount with Suction Hose)	23.5kg (51.8lb)
Dimensions (Cart Mount)	543 x 527 x 999mm (21.38 x 20.74 x 39.33")
Dimensions (Wall Mount)	543 x 359 x 516mm (21.38 x 14.36 x 20.33")
