Name: Sagola PSAM 104 Airless Pressure Spray Gun
SKU: 30170109
Price: 332.00 USD
Availability: InStock

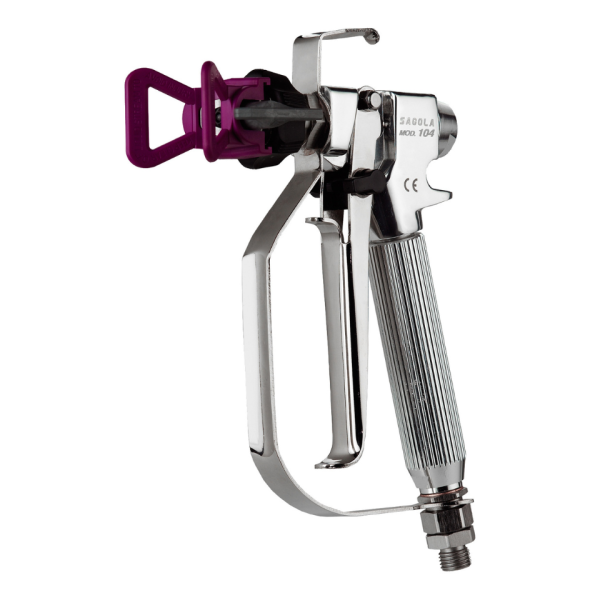

Sagola PSAM 104 Airless Pressure Spray Guns

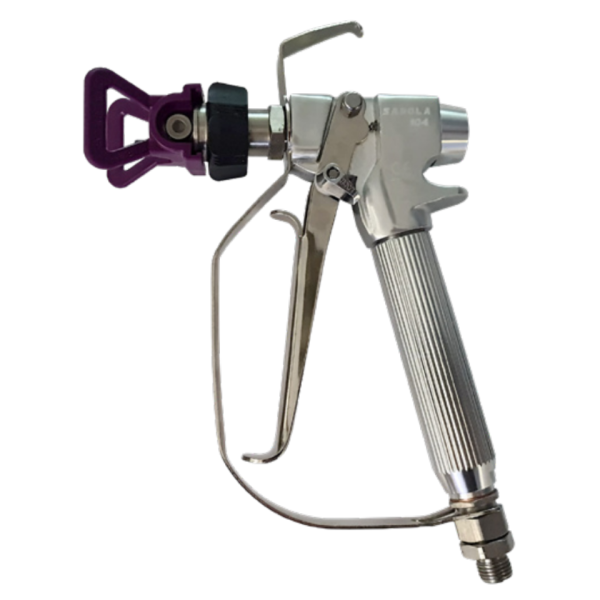

Sagola PSAM 104 Airless Pressure Spray Gun Side View

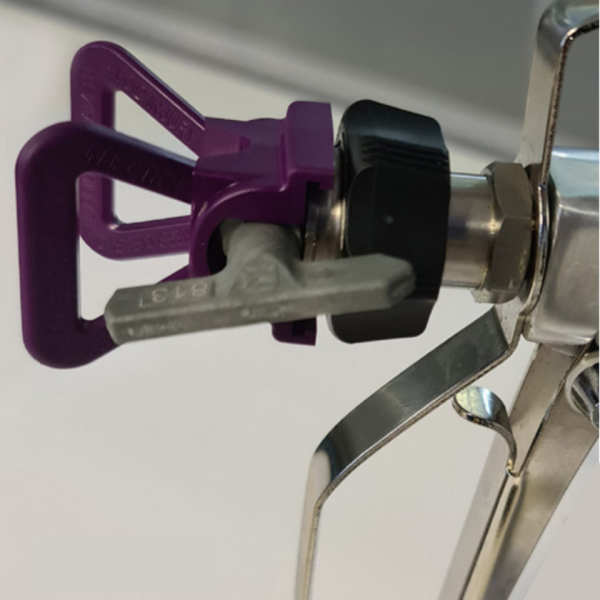

Sagola PSAM 104 Airless Pressure Spray Gun Tip Close UP

Sagola PSAM 104 Airless Pressure Spray Gun

0 out of 5

( There are no reviews yet. )

$332.00

Sagola PSAM 104 airless spray gun for pneumatic/electric systems up to 250 bar—fast transfer, low overspray, pro-grade build for cabinets, metal, and industrial parts.
⚠️ Airless spray tip not included.

SKU: 30170109 Category: Airless Spray Guns

Description
Reviews (0)

Description

Sagola PSAM 104 Airless Pressure Spray Gun

The Sagola PSAM 104 is a professional airless pressure spray gun designed for pneumatic and electric airless systems up to 250 bar. Optimized for medium-viscosity coatings, it delivers fast material transfer with minimal overspray and consistent film build on cabinets, metalwork, structures, and general industrial parts.

High-pressure performance: Recommended for airless setups not exceeding 250 bar for reliable atomization and speed.
Built to last: Robust construction for daily production use; pro-grade ergonomics reduce fatigue during long shifts.
Shop-friendly: Includes 1/4″ swivel (M) coupling and filter holder for quick maintenance and smooth flow.
Versatile materials: Suited to primers, enamels, and industrial topcoats in the medium-viscosity range.

Packing List:
Sagola 104 PSAM Pressure Spray Gun with Spray Gun Product Filter
– 100 Mesh (Yellow x 1), Cleaning Needle, Wrench (x2) & Reversible
Airless Spray Tip Guard. (Airless Spray Tip not included).

Application	Reversible Tip	Nozzle	Spray Angle	Spray width @ 30 cm	Flow @ 100 bar (1450 psi)	Part Number	Product Filter
Finishes
Finishes	07/20	0.18 mm (0.007″)	20°	100–150 mm (4–6″)	0.18 lpm	PT81461102	Red
Finishes	07/40	0.18 mm (0.007″)	40°	200–250 mm (8–10″)	0.18 lpm	PT81461103	Red
Finishes	07/50	0.18 mm (0.007″)	50°	250–300 mm (10–12″)	0.18 lpm	PT81461104	Red
Finishes	09/20	0.23 mm (0.009″)	20°	100–150 mm (4–6″)	0.25 lpm	PT81461105	Red
Finishes	09/40	0.23 mm (0.009″)	40°	200–250 mm (8–10″)	0.25 lpm	PT81461106	Red
Finishes	09/60	0.23 mm (0.009″)	60°	300–355 mm (12–14″)	0.25 lpm	PT81461107	Red
Finishes	11/20	0.28 mm (0.011″)	20°	100–150 mm (4–6″)	0.37 lpm	PT81461108	Red
Finishes	11/40	0.28 mm (0.011″)	40°	200–250 mm (8–10″)	0.37 lpm	PT81461109	Red
Finishes	11/60	0.28 mm (0.011″)	60°	300–355 mm (12–14″)	0.37 lpm	PT81461110	Red
Basecoats & Primers
Basecoats & Primers	13/20	0.33 mm (0.013″)	20°	100–150 mm (4–6″)	0.57 lpm	PT81461111	Red
Basecoats & Primers	13/40	0.33 mm (0.013″)	40°	200–250 mm (8–10″)	0.57 lpm	PT81461112	Red
Basecoats & Primers	13/80	0.33 mm (0.013″)	80°	405–457 mm (16–18″)	0.57 lpm	PT81461114	Red
Basecoats & Primers	15/20	0.38 mm (0.015″)	20°	100–150 mm (4–6″)	0.72 lpm	PT81461115	Yellow
Basecoats & Primers	15/40	0.38 mm (0.015″)	40°	200–250 mm (8–10″)	0.72 lpm	PT81461116	Yellow
Basecoats & Primers	15/80	0.38 mm (0.015″)	80°	405–457 mm (16–18″)	0.72 lpm	PT81461118	Yellow
High Viscosity Products
High Viscosity	17/20	0.43 mm (0.017″)	20°	100–150 mm (4–6″)	0.98 lpm	PT81461123	Yellow
High Viscosity	17/40	0.43 mm (0.017″)	40°	200–250 mm (8–10″)	0.98 lpm	PT81461124	Yellow
High Viscosity	17/60	0.43 mm (0.017″)	60°	300–355 mm (12–14″)	0.98 lpm	PT81461125	Yellow
High Viscosity	17/80	0.43 mm (0.017″)	80°	405–457 mm (16–18″)	0.98 lpm	PT81461126	Yellow
High Viscosity	18/20	0.45 mm (0.018″)	20°	200–250 mm (8–10″)	1.10 lpm	PT81461127	Yellow
High Viscosity	18/40	0.45 mm (0.018″)	40°	200–250 mm (8–10″)	1.10 lpm	PT81461128	Yellow
High Viscosity	18/60	0.46 mm (0.018″)	60°	300–355 mm (12–14″)	1.10 lpm	PT81461129	Yellow
High Viscosity	19/20	0.48 mm (0.019″)	20°	100–150 mm (4–6″)	1.30 lpm	PT81461132	White
High Viscosity	19/40	0.48 mm (0.019″)	40°	200–250 mm (8–10″)	1.30 lpm	PT81461133	White
High Viscosity	19/60	0.48 mm (0.019″)	60°	300–355 mm (12–14″)	1.30 lpm	PT81461134	White
High Viscosity	19/80	0.48 mm (0.019″)	80°	405–457 mm (16–18″)	1.30 lpm	PT81461135	White
High Viscosity	21/20	0.53 mm (0.021″)	20°	100–150 mm (4–6″)	1.52 lpm	PT81461137	White
High Viscosity	21/40	0.53 mm (0.021″)	40°	200–250 mm (8–10″)	1.52 lpm	PT81461138	White
High Viscosity	21/60	0.53 mm (0.021″)	60°	300–355 mm (12–14″)	1.52 lpm	PT81461139	White
High Viscosity	21/80	0.53 mm (0.021″)	80°	405–457 mm (16–18″)	1.52 lpm	PT81461140	White
Thick Coats
Thick Coats	23/20	0.58 mm (0.023″)	20°	100–150 mm (4–6″)	1.83 lpm	PT81461142	White
Thick Coats	23/40	0.58 mm (0.023″)	40°	200–250 mm (8–10″)	1.83 lpm	PT81461143	White
Thick Coats	23/60	0.58 mm (0.023″)	60°	300–355 mm (12–14″)	1.83 lpm	PT81461144	White
Thick Coats	23/80	0.58 mm (0.023″)	80°	405–457 mm (16–18″)	1.83 lpm	PT81461145	White
Thick Coats	25/20	0.63 mm (0.025″)	20°	100–150 mm (4–6″)	2.13 lpm	PT81461147	White
Thick Coats	25/40	0.63 mm (0.025″)	40°	200–250 mm (8–10″)	2.13 lpm	PT81461148	White
Thick Coats	25/60	0.63 mm (0.025″)	60°	300–355 mm (12–14″)	2.13 lpm	PT81461149	White
Thick Coats	25/80	0.63 mm (0.025″)	80°	405–457 mm (16–18″)	2.13 lpm	PT81461150	White
Thick Coats	27/20	0.68 mm (0.027″)	20°	100–150 mm (4–6″)	2.50 lpm	PT81461152	White
Thick Coats	27/60	0.68 mm (0.027″)	60°	300–355 mm (12–14″)	2.50 lpm	PT81461154	White
Thick Coats	27/80	0.68 mm (0.027″)	80°	405–457 mm (16–18″)	2.50 lpm	PT81461155	White
Thick Coats	31/40	0.78 mm (0.031″)	40°	200–250 mm (8–10″)	3.42 lpm	PT81461163	White
Thick Coats	31/60	0.78 mm (0.031″)	60°	300–355 mm (12–14″)	3.42 lpm	PT81461164	White
Thick Coats	31/80	0.78 mm (0.031″)	80°	405–457 mm (16–18″)	3.42 lpm	PT81461165	White
Thick Coats	35/20	0.89 mm (0.035″)	20°	100–150 mm (4–6″)	4.30 lpm	PT81461181	White
Thick Coats	35/40	0.89 mm (0.035″)	40°	200–250 mm (8–10″)	4.30 lpm	PT81461182	White
Thick Coats	35/60	0.89 mm (0.035″)	60°	300–355 mm (12–14″)	4.30 lpm	PT81461183	White
