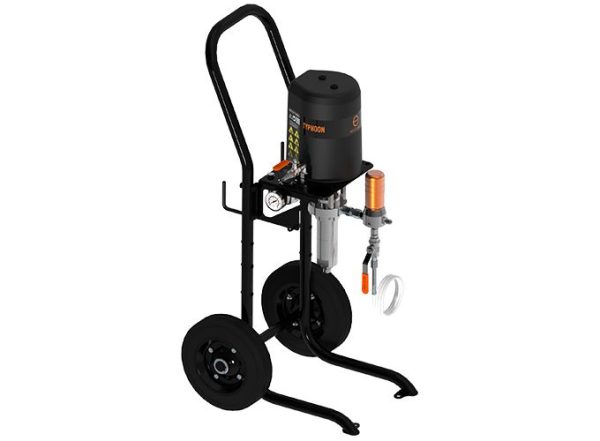

Elcometer Typhoon 32:1 Airless Pump & Spray Gun
$4,245.00
The Ideal Airless Pump for Metal Fabricators
- Description
- Additional information
- Reviews (0)
Description

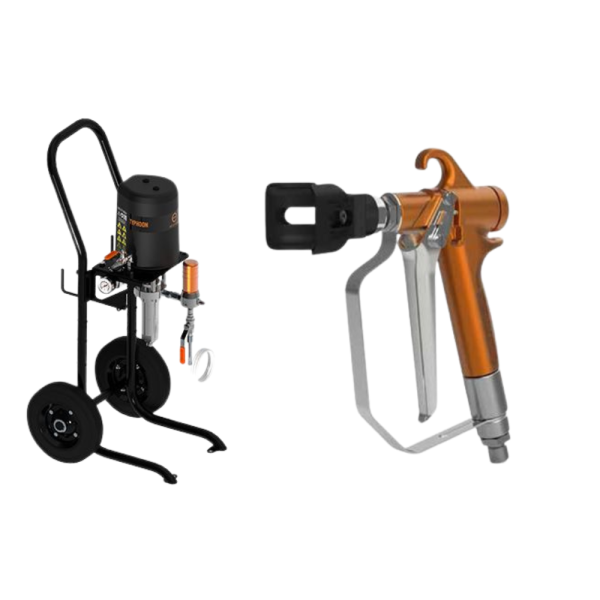

Elcometer TYPHOON 32:1 Airless Pump & Sagola 500 PSAM Spray Gun
Ideal for metal fabricators applying shop primer, epoxy and other protective coatings, the 32:1 ratio Elcometer TYPHOON is an affordable airless pump with an excellent cost of ownership.
Features
- Low air consumption 1.03cfm (29.3lpm) and low maintenance air motor.
- Protective air motor housing made from high grade polymer.
- Anti-pulse chamber, compatible with waterborne & solvent based products, with stainless steel 80 mesh filter prevents tip blockages and ensures smooth spraying.
- Rugged, long lasting pump with tungsten carbide and stainless steel ball and seats.
- Easily accessible high pressure dump valve ensures fast material change over and easy pump cleaning.
- 360° movable inlet fitting for easy access to paint drum.
- Fluid and air regulator for consistent control of fluid & air pressure.
- Floor locking plates for static use.
- Ease of manual handling, less than 11.8kg (26lb) wall mounted or only 24kg (53lb) complete with trolley and suction hose or hopper options.
- Easy to access wet cup for monitoring throat seal lubricant.
- Each pump is fitted onto a rugged & ergonomic trolley with built-in hose & gun rack, for easy movement around site.
- Unbolt the bracket and pump from the trolley to wall mount.
Warranty Information
All Elcometer-branded fluid application systems now come with a
1-year warranty, extendable by an additional 12 months
through online registration.
1-year warranty, extendable by an additional 12 months
through online registration.
| File | Link |
|---|---|
| Pump Files | |
|
Typhoon Airless Pump Datasheet
|
Open Data Sheet |
|
Typhoon Airless Pump Multi-lingual Instructional Manual
|
Open Manual |
| Spray Gun Files | |
|
PSAM 500 — Data Sheet
|
Open Data Sheet |
|
PSAM 104 — Data Sheet
|
Open Data Sheet |
Additional information
| Weight | 22 lbs |
|---|---|
| Ratio | 32:1 |
| Maximum fluid particle size | 0.25mm (10mils) |
| Fluid temperature range | 4.4 – 60°C (40 – 140°F) |
| Fluid inlet size | 1/2” BSP Male |
| Fluid outlet size | 1/4” BSP Male |
| Compatible Products that can be pumped | Solvent and water based products |
| Seats | Polyamide |
| Balls | Stainless Steel |
| Centre Section | Hard Chrome Stainless Steel |
| Packing Kit (Top) | Polyamide |
| Packing Kit (Bottom) | Polyamide |
| Pump Body / Cylinder Housing | Aluminum |
| Air Pressure Operating Range | 1-7bar (14-101psi) |
| Air Consumption at 100bar (1450psi) & 5.7 CPM | 29.3lpm (1.03cfm) |
| Maximum Air Inlet Pressure | 7bar (101psi) |
| Air Inlet | 1/4” BSP Female |
| Air Exhaust / Silencer Port | 1/4” BSP Female |
| Compressor Requirements (Minimum) | 29.3lpm (1.03cfm) |
| Ambient Air Temperature Operating Range | -10 – 60°C (14 – 140°F) |
| Maximum Fluid Outlet Working Pressure | 226bar (3278psi) |
| Stroke Length | 60mm (2.36”) |
| Maximum Spray Tip Size | 0.45m (0.018") |
| Product Output per Cycle | 45 cc (1.54 fl oz) |
| Free Flow Delivery @ 60 CPM | 2.7 lpm (90.7 US fl oz) |
| Weight (Pump only) | 8.7kg (19.2lb) |
| Weight (Wall Mount with Suction Hose) | 11.8kg (26lb) |
| Weight (Cart Mount with Suction Hose) | 23kg (50.7lb) |
| Weight (Wall Mount with Hopper) | 11.9kg (26.2lb) |
| Weight (Cart Mount with Hopper) | 23.1kg (50.9lb) |
| Dimensions (Cart Mount) | 439 x 490 x 999mm (17.3 x 19.3 x 39.3") |
| Dimensions (Wall Mount) | 332 x 304 x 535mm (13.07 x 11.97 x 21.06") |
