The X 4100 is a great light weight industrial pressure spray gun.

SKU: Sagola 4100 Xtreme Needle Nozzle Kits Category: Needle Nozzle Kits Tags: Needle Nozzle Kit, X 4100

NEEDLE/NOZZLE

Material

Clear

Description
Additional information
Reviews (2)

Description

Sagola X 4100 Needle Nozzle Kits

The Sagola X 4100 Needle Nozzle kit is designed to work with any X 4100 gun and its air caps. This needle nozzle kit also offers a Tungsten Carbide option for clients who paint high volumes and need the most reliable needle Nozzle Kits.

Interchangeable Parts
Consistent high quality finishes
Low Maintenance

X 4100 Manual

Application Guide

Gravity Sprayguns

Industrial Sprayguns

X 4100 Series

Recommended nozzle sizes and aircap systems for gravity-fed industrial spraygun applications.
Nozzle size is followed by the recommended aircap in brackets.

Industry	Application	Recommended Aircap Systems
Industry	Application	X96 64/62S Medium Pressure	XT01 EPA	XT03 3030 HVLP
Industrial Bodyshop	Fillers	1.6–1.8 [96]	1.6–1.8 [XT01]	1.6–1.8 [XT03]
	Basecoats	—	1.3–1.4 [XT01]	1.4 [XT03]
	Clearcoats	1.4–1.6 [96]	1.4 [XT01]	—
	Single Stage Paints	1.6 [96]	1.4–1.6 [XT01]	—
Metal Industry	Primers	1.6–1.8 [96]	—	1.8 [XT03]
	Enamels and Clears	1.4–1.6 [96]	1.4–1.6 [XT01]	—
	Thick Coats	2.2–2.8 [64/62S]	—	—
	Silicates and Abrasives	2.2 CT–2.8 CT [64/62S]	—	1.8 CT–2.5 CT [3030]
Wood Industry	Dyes	1.2–1.3 [96]	1.2–1.3 [XT01]	1.3 [XT03]
	Basecoats and Sealants	1.6–1.8 [96]	1.6 [XT01]	1.8 [XT03]
	Clearcoats	1.4–1.6 [96]	1.4–1.6 [XT01]	—
	Pigmented Lacquers	1.4 [96]	1.4 [XT01]	—
General Industry	Adhesives	—	—	—
	Ceramic and Vitro-Ceramic	1.8 CT–2.8 CT [64/62S]	—	1.6 CT–2.2 CT [3030]
	Paint for Plastic and Soft	1.4–1.8 [96]	1.4–1.6 [XT01]	1.4–1.6 [XT03]
	Calorific	1.4–1.6 [96]	1.4–1.6 [XT01]	1.4 [XT03]

Mobile users:
Swipe horizontally to view all recommended configurations.

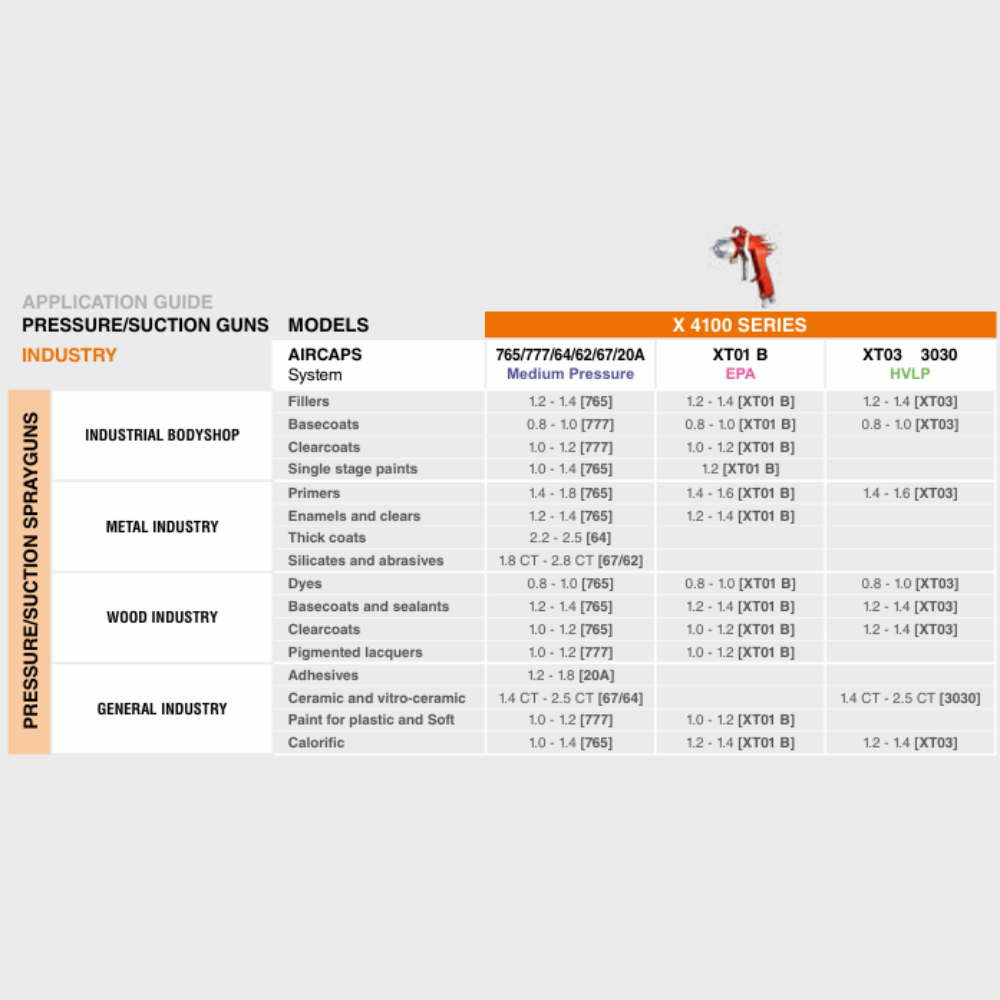

Application Guide

Pressure/Suction Spray Guns

X 4100 Series

Recommended nozzle sizes and aircap systems by industry and coating application.
Nozzle size is followed by the recommended aircap in brackets.

Industry	Application	Recommended Aircap Systems
Industry	Application	765 / 777 / 64 / 62 / 67 / 20A Medium Pressure	XT01 B EPA	XT03 / 3030 HVLP
Industrial Bodyshop	Fillers	1.2–1.4 [765]	1.2–1.4 [XT01 B]	1.2–1.4 [XT03]
	Basecoats	0.8–1.0 [777]	0.8–1.0 [XT01 B]	0.8–1.0 [XT03]
	Clearcoats	1.0–1.2 [777]	1.0–1.2 [XT01 B]	—
	Single Stage Paints	1.0–1.4 [765]	1.2 [XT01 B]	—
Metal Industry	Primers	1.4–1.8 [765]	1.4–1.6 [XT01 B]	1.4–1.6 [XT03]
	Enamels and Clears	1.2–1.4 [765]	1.2–1.4 [XT01 B]	—
	Thick Coats	2.2–2.5 [64]	—	—
	Silicates and Abrasives	1.8 CT–2.8 CT [67/62]	—	—
Wood Industry	Dyes	0.8–1.0 [765]	0.8–1.0 [XT01 B]	0.8–1.0 [XT03]
	Basecoats and Sealants	1.2–1.4 [765]	1.2–1.4 [XT01 B]	1.2–1.4 [XT03]
	Clearcoats	1.0–1.2 [777]	1.0–1.2 [XT01 B]	1.2–1.4 [XT03]
	Pigmented Lacquers	1.0–1.2 [777]	1.0–1.2 [XT01 B]	—
General Industry	Adhesives	1.2–1.8 [20A]	—	—
	Ceramic and Vitro-Ceramic	1.4 CT–2.5 CT [67/64]	—	1.4 CT–2.5 CT [3030]
	Paint for Plastic and Soft Materials	1.0–1.2 [777]	1.0–1.2 [XT01 B]	—
	Calorific	1.0–1.4 [765]	1.2–1.4 [XT01 B]	1.2–1.4 [XT03]

Mobile users:
Swipe horizontally to view all spray gun configurations.

Additional information

Weight	N/A
Air Cap	765 Air Cap, 777 Air Cap, XT03 Air Cap, XT01B Air Cap, 3030 HVLP Air Cap, Super VIT Air Cap, 20A Air Cap
NEEDLE/NOZZLE	0.80mm, 1.00mm, 1.20mm, 1.30mm, 1.40mm, 1.50mm, 1.60mm, 1.80mm, 2.00mm, 2.20mm, 2.50mm, 2.80mm
Material	Stainless Steel, Tungsten Carbide
Dimensions	20 x 17 x 4.2cm (7.87 x 6.7 x 1.65”)
Weight (with Filter Holder)	645g (1.42lbs)
Air Inlet Couplings	6.35mm (1/4”) Male BSP
Paint Filter	80 mesh
Product Inlet Coupling	9.5mm (3/8”) Male BSP
Design Pressure	8bar (116psi)
Working Pressure	2 – 3bar (29 – 43.5psi)
Sound Pressure Level (Average)	80 dB
Compliance	ATEX II 2G x (Directive 2014/34/EU)
